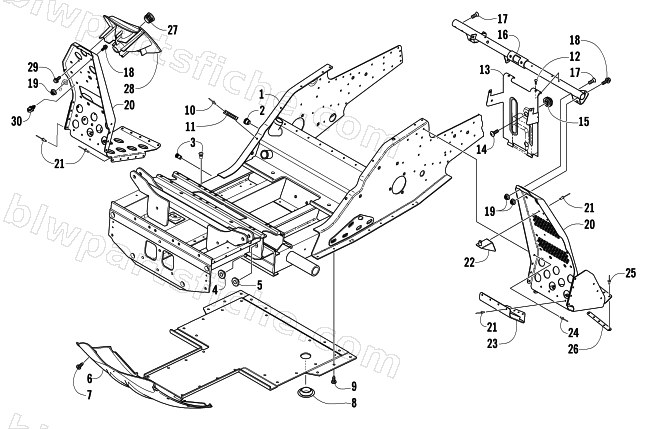

2005 Arctic Cat T660 TURBO ST EFI EARLY BUILD — FRONT FRAME AND FOOTREST ASSEMBLY
2005 T660 TURBO ST EFI EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-820 | CHASSIS,FRT END ASSY | 1 | $2,080.95 | |
| 2 | 0623-581 | INSERT, A L SERIES AL57-518-150 5/16-18 | 1 | $3.16 | |
| 3 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 | |
| 4 | 0607-420 | INSERT,LOWER A-ARM MTG. | 1 | $2.47 | |
| 5 | 0607-421 | INSERT,UPPER A-ARM MTG. | 1 | $2.47 | |
| 6 | 2706-672 | BELLY PAN, CTR-ROUTED | 1 | $175.95 | |
| 7 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 8 | 2606-367 | PLUG, OIL DRAIN ACCESS | 1 | $3.16 | |
| 9 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 10 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 11 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 12 | 1623-175 | SCREW,SELF TAP-TSTRH 10-24X3/4 TP F Z | 1 | $13.73 | |
| 13 | 0745-215 | BRKT, ECU-PTD BLK | 1 | $78.95 | |
| 14 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 15 | 0645-359 | MOUNT, ECU | 1 | $24.95 | |
| 16 | 0705-963 | SUPPORT,STEERING-PTD BLK | 1 | $89.95 | |
| 17 | 8019-614 | SCREW,MACH-TSPNH 1/4-20 X 1 1/4 GR2 BLK | 1 | $0.95 | |
| 18 | 8020-039 | SCREW,CAP-HFH 1/4-20 X 0.625 Z&Y | 1 | $0.95 | |
| 19 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 20 | 2606-444 | FOOTREST, RH | 1 | $100.95 | |
| 20 | 2606-733 | FOOTREST,LH-W/HOLES | 1 | $92.95 | |
| 21 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 22 | 0705-173 | BRKT, FASTENER-GUARD-PTD BLK | 1 | $20.95 | |
| 23 | 2606-458 | PLATE, BACKING-FOOTREST-RH | 1 | $14.95 | |
| 23 | 2606-459 | PLATE, BACKING-FOOTREST-LH | 1 | $13.95 | |
| 24 | 0623-341 | RIVET,3/16 MONOBOLT (.214/.437) | 1 | $1.23 | |
| 25 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 26 | 2706-110 | PLATE,BACKING-FOOTREST-PTD BLK | 1 | $6.95 | |
| 27 | 0623-831 | CAP, SPINDLE (RDR-10-1420) | 1 | $1.50 | |
| 28 | 1706-099 | CUP,RECOIL ROPE W/REV. & ALARM HOLES | 1 | $37.95 | |
| 29 | 0623-297 | SCREW,SELF TAP-HWH #8X3/4 TYPE A | 1 | $0.68 | |
| 30 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 |
