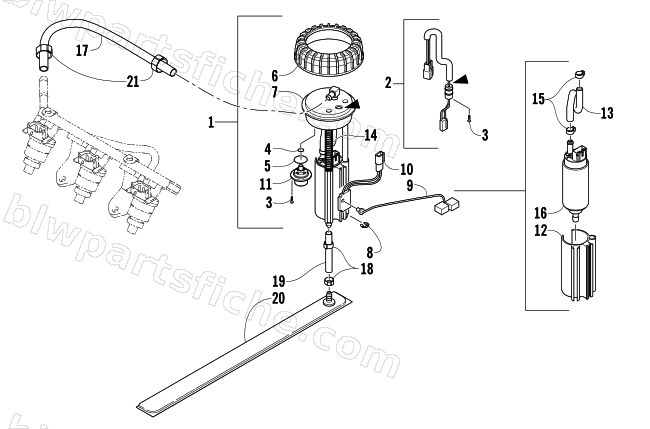

2005 Arctic Cat T660 TOURING — FUEL PUMP ASSEMBLY
2005 T660 TOURING
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1670-595 | PUMP, FUEL- AC T660 | 1 | $595.95 | |
| 2 | 1670-612 | HARNESS,FUEL PUMP-ASSY | 1 | $196.95 | |
| 3 | 1670-412 | SCREW, RETAINING | 1 | $2.95 | |
| 4 | 1670-532 | O-RING,REGULATOR-SMALL | 1 | $3.71 | |
| 5 | 1670-533 | O-RING,REGULATOR-LARGE | 1 | $3.99 | |
| 6 | 1670-119 | NUT,RETAINING-FUEL PUMP FLANGE | 1 | $12.95 | |
| 7 | 1670-118 | SEAL,FUEL PUMP FLANGE (MASON) | 1 | $20.63 | |
| 8 | 1670-244 | RING, STUD RETAINER - FUEL PUMP | 1 | $1.95 | |
| 9 | 0670-460 | ARM, FLOAT-FUEL PUMP (V/N 75-584) | 1 | $94.95 | |
| 10 | 1670-408 | ELEMENT, FUEL SENSOR-ASSY | 1 | $89.95 | |
| 12 | 1670-529 | HOUSING,FUEL PUMP | 1 | $82.95 | |
| 13 | 1670-521 | HOSE,FUEL | 1 | $92.95 | |
| 14 | 1670-411 | SPRING, FUEL PUMP | 1 | $6.34 | |
| 15 | 1670-520 | CLAMP,HOSE | 1 | $5.78 | |
| 16 | 1670-531 | PUMP,FUEL- (V/N F20000107) | 1 | $335.95 | |
| 17 | 0610-075 | HOSE,GASLINE-10'ROLL | 1 | $150.95 | |
| 18 | 0610-415 | CLAMP,HOSE-10.8 MM TO 13.3 MM | 1 | $3.71 | |
| 19 | 0610-548 | HOSE, GASLINE-5/16 X 3.50 | 1 | $2.95 | |
| 20 | 1670-525 | FILTER, FUEL-PICK UP | 1 | $45.95 | |
| 21 | 0610-419 | CLAMP, HOSE (14.5), 12.0 MM TO 14.5 MM | 1 | $1.92 |
