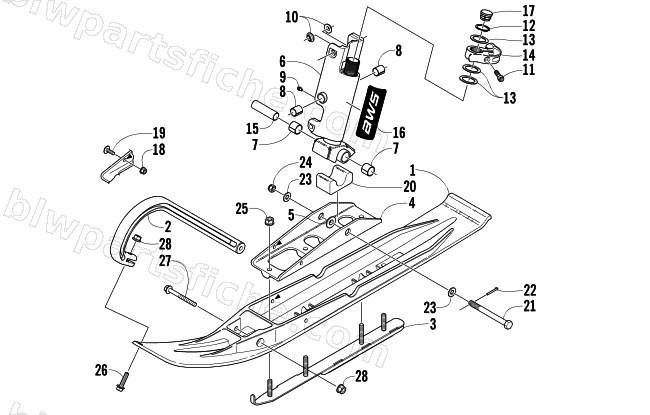

SKI AND SPINDLE ASSEMBLY
2005 SABERCAT 700 EFI EXT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1703-109 | SKI,BLK PLASTIC-MACH | 1 | $287.95 | |
| 2 | 0603-624 | HANDLE,PLASTIC-BLACK | 1 | $32.95 | |
| 3 | 2603-456 | SKAG,SPLIT - WOODY'S-RH | 1 | $84.95 | |
| 3 | 2603-457 | SKAG,SPLIT - WOODY'S-LH | 1 | $84.95 | |
| 4 | 1703-632 | SADDLE, SKI- ASSY- PTD BLK | 1 | $74.95 | |
| 5 | 0603-621 | INSERT-SKI SADDLE | 1 | $4.95 | |
| 6 | 1703-432 | SPINDLE,RH-FABR BLK | 1 | $308.95 | |
| 6 | 1703-433 | SPINDLE,LH-FABR BLK | 1 | $334.95 | |
| 7 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 8 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 9 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 10 | 0603-647 | INSERT,ALUM.-SPINDLE | 1 | $5.78 | |
| 11 | 8005-584 | SCREW, CAP-HSH 5/16-18X1.25 Z&Y | 1 | $0.65 | |
| 12 | 0623-796 | SNAP RING,EXTL-BOWED-1 1/8 DIA | 1 | $1.23 | |
| 13 | 1603-203 | WASHER,THRUST-SPINDLE WELD'T-.060 | 1 | $2.75 | |
| 14 | 1703-659 | ARM,STEERING-SPINDLE-PNT BLK | 1 | $66.95 | |
| 15 | 2603-548 | AXLE,SPINDLE | 1 | $19.25 | |
| 16 | 6611-057 | DECAL,SPINDLE(2005 S-CAT BLK) | 1 | $40.95 | |
| 16 | 6611-056 | DECAL,SPINDLE (SCAT GRN) | 1 | $34.95 | |
| 16 | 6611-258 | DECAL, SPINDLE (RED) | 1 | $34.95 | |
| 17 | 0623-831 | CAP, SPINDLE (RDR-10-1420) | 1 | $1.50 | |
| 18 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 19 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 20 | 0603-036 | DAMPER, SKI RUBBER | 1 | $17.87 | |
| 21 | 0623-552 | SCREW,CAP-HH 7/16-20 X 4.50 W/HOLE | 1 | $12.35 | |
| 22 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 23 | 0623-728 | WSHR, FLAT-HARD(.469 X 1.125 X .100 THK) | 1 | $3.02 | |
| 24 | 0123-296 | NUT,FLEX-FULL 7/16-20 | 1 | $6.47 | |
| 25 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 26 | 8020-135 | SCREW,CAP-HFH 5/16-18 X 1.50 G5 Z&Y | 1 | $1.64 | |
| 27 | 8020-143 | SCREW,CAP-HFH 5/16-18 X 3.50 G5 Z&Y | 1 | $21.95 | |
| 28 | 8048-426 | NUT,HEX FLG-TOP LOCK 5/16-18 GR F Z&Y | 1 | $1.23 |
