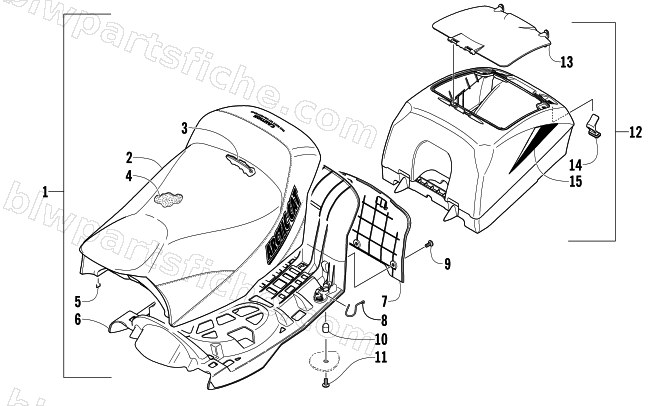

2005 Arctic Cat SABERCAT 600 EFI LX — SEAT AND STORAGE BOX ASSEMBLY
2005 SABERCAT 600 EFI LX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 7997-993 | SEAT,MFG ASSY (2005 S-CAT BLK) | 1 | $705.95 | |
| 1 | 7998-034 | SEAT,MFG ASSY(05 S-CAT GRN) | 1 | $549.95 | |
| 1 | 7998-106 | SEAT,MFG ASSY(05 SC RED) | 1 | $626.95 | |
| 2 | 2706-668 | COVER,SEAT (05 S-CAT BLK) | 1 | $556.95 | |
| 2 | 2706-689 | COVER,SEAT (05 S-CAT GRN) | 1 | $365.95 | |
| 2 | 2706-721 | COVER,SEAT (05 SC RED) | 1 | $539.95 | |
| 4 | 0717-176 | FOAM, SEAT (85-90 ILD) .48@5.3 | 1 | $140.95 | |
| 5 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 6 | 3606-056 | SEAT BASE-STORAGE | 1 | $97.95 | |
| 7 | 3606-248 | PANEL, SEAT-REAR (SABERCAT) | 1 | $21.95 | |
| 8 | 1623-177 | CLIP,RETAINING SPRING-SEAT | 1 | $2.95 | |
| 9 | 1623-158 | SCREW,PLASTITE-TSPNH 1/4-10X.500 Z&BLK | 1 | $0.95 | |
| 10 | 1623-138 | LATCH, SEAT | 1 | $16.49 | |
| 11 | 8017-667 | SCREW,MACH-TSTRH 5/16-18 X .50 GR2 Z&Y | 1 | $3.16 | |
| 12 | 3606-074 | BOX, STORAGE-MFG ASSY | 1 | $260.95 | |
| 14 | 3606-357 | STRAP, HOLDDOWN-STORAGE | 1 | $3.44 | |
| 15 | 6611-078 | DECAL,BOX-RH (S-CAT BLK) | 1 | $20.95 | |
| 15 | 6611-079 | DECAL,BOX-LH (S-CAT BLK) | 1 | $22.95 | |
| 15 | 6611-054 | DECAL,BOX-RH (SC GRN) | 1 | $22.95 | |
| 15 | 6611-055 | DECAL,BOX-LH (SC GRN) | 1 | $22.95 | |
| 15 | 6611-256 | DECAL, BOX-RH(RED) | 1 | $22.95 | |
| 15 | 6611-257 | DECAL, BOX-LH(RED) | 1 | $22.95 |
