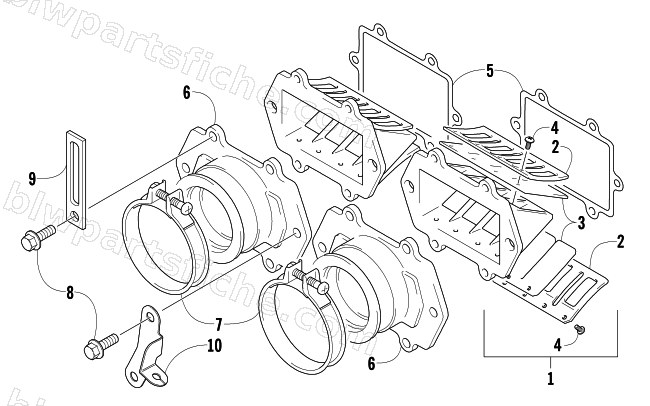

2005 Arctic Cat SABERCAT 500 LX — REED VALVE ASSEMBLY
2005 SABERCAT 500 LX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3005-876 | VALVE ASSY, REED | 1 | $249.95 | |
| 2 | 3005-877 | STOPPER, REED VALVE | 1 | $30.95 | |
| 3 | 3005-878 | VALVE, REED | 1 | $53.95 | |
| 4 | 3004-506 | SCREW, 3X8 | 1 | $2.47 | |
| 5 | 3005-879 | GASKET, REED VALVE | 1 | $17.87 | |
| 6 | 3006-747 | PIPE COMP,INTAKE | 1 | $116.59 | |
| 7 | 3004-212 | CLAMP, INTAKE,M52 | 1 | $27.95 | |
| 8 | 3007-409 | BOLT | 1 | $3.16 | |
| 9 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 10 | 3006-485 | BRKT,OIL PUMP | 1 | $7.95 |
