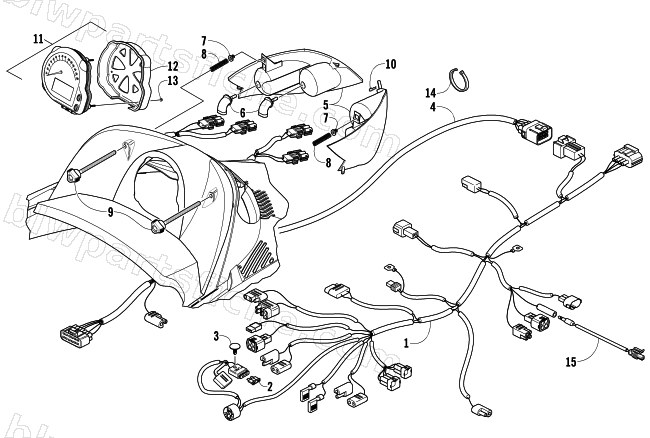

2005 Arctic Cat SABERCAT 500 LX — HEADLIGHT, INSTRUMENTS, AND WIRING ASSEMBLIES
2005 SABERCAT 500 LX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1686-014 | HARNESS,MAIN (05 500 AA LX) | 1 | $305.95 | |
| 2 | 0630-100 | FUSE, 7 1/2 AMP ATO/ATC | 1 | $5.95 | |
| 3 | 0623-589 | CLIP,RETAINING-.191X.700 | 1 | $2.75 | |
| 4 | 1686-065 | HARNESS,HOOD(05 SABERCAT) | 1 | $211.95 | |
| 5 | 0609-530 | HEADLIGHT,RH-ASSY | 1 | $183.95 | |
| 5 | 0609-531 | HEADLIGHT,LH-ASSY | 1 | $183.95 | |
| 6 | 0609-251 | BULB, (GE 894)HEADLIGHT-HIGH BEAM | 1 | $29.95 | |
| 7 | 1623-025 | GROMMET,SCREW-PLASTIC | 1 | $0.95 | |
| 8 | 0623-360 | SPRING,ADJUSTMENT-HEADLIGHT | 1 | $15.11 | |
| 9 | 1623-024 | SCREW,ADJUSTMENT | 1 | $5.95 | |
| 10 | 1623-137 | CLIP,HAIRPIN | 1 | $0.95 | |
| 11 | 0620-292 | SPEEDO/TACH-DIGITAL-BLK(4 CAL) | 1 | $773.95 | |
| 12 | 0620-281 | BRKT,RETAINING-SPEEDO/TACH | 1 | $52.95 | |
| 13 | 0620-280 | NUT,W/WASHER | 1 | $13.73 | |
| 14 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 15 | 0686-858 | HARNESS,ADAPTER-TEMP SWITCH | 1 | $23.39 |
