2005 Arctic Cat SABERCAT 500 LX — AIR SILENCER ASSEMBLY
2005 SABERCAT 500 LX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.

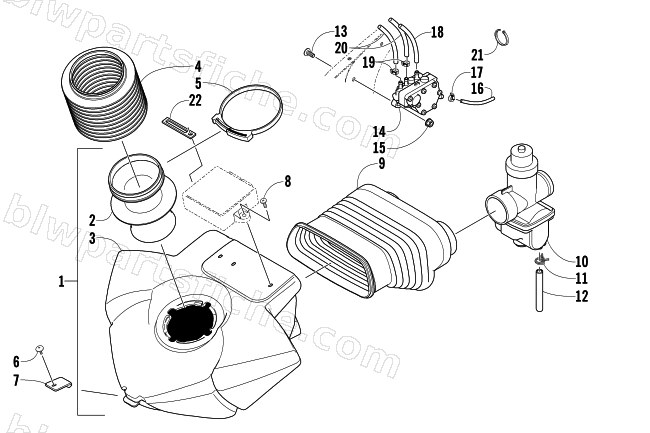

| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-611 | SILENCER,AIR-ASSY (RB 0770-720) | 1 | $125.95 | |
| 2 | 1670-473 | INLET,AIR SILENCER | 1 | $30.95 | |
| 3 | 1670-774 | SILENCER,AIR-ASSY | 1 | $101.95 | |
| 4 | 1670-514 | TUBE, INLET HOSE | 1 | $47.95 | |
| 5 | 1623-132 | CLAMP,SNP100 | 1 | $12.35 | |
| 6 | 1623-031 | R/B 2623-165 | 1 | $3.95 | |
| 7 | 3606-146 | HOLDDOWN,AIR SILENCER | 1 | $12.35 | |
| 8 | 1623-204 | SCREW,PLASTITE-HWH 1/4-10X1.0 Z&Y | 1 | $1.23 | |
| 9 | 1670-581 | BOOT, CARB-ASSY 500AA | 1 | $99.95 | |
| 10 | 0770-697 | CARB,ASS'Y VM34-612 | 1 | $427.95 | |
| 11 | 0623-652 | CLAMP,HOSE-WIRE(CP10101) | 1 | $1.78 | |
| 12 | 0610-442 | HOSE, DRAIN (1.5") | 1 | $4.40 | |
| 13 | 8017-582 | R/B 1623-689 | 1 | $0.65 | |
| 14 | 1670-537 | PUMP, FUEL (500AA) | 1 | $51.95 | |
| 15 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 16 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 16 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 17 | 1623-351 | CLAMP, HOSE-12.32MM ID | 1 | $0.95 | |
| 18 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 19 | 1623-233 | CLAMP, HOSE-10.41mm ID | 1 | $0.68 | |
| 20 | 6101-001 | HOSE,.235 ID X .370 OD (100') | 1 | $892.95 | |
| 20 | 6101-009 | HOSE,.235 ID X .370 OD (50') | 1 | $469.95 | |
| 21 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 22 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 |
