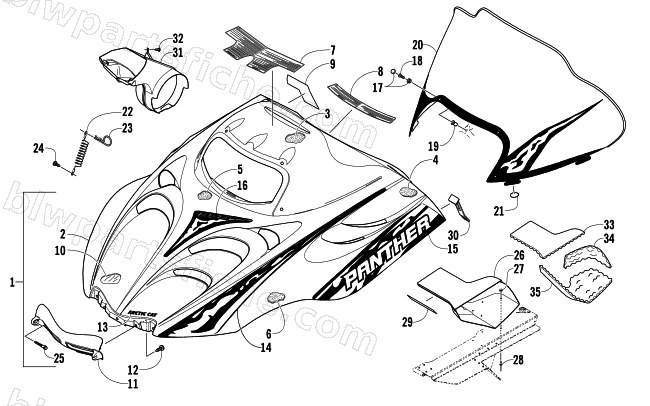

2005 Arctic Cat PANTHER 370 R — HOOD AND WINDSHIELD ASSEMBLY
2005 PANTHER 370 R
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-778 | HOOD W/DECALS-05 PA 370 | 1 | $1,374.95 | |
| 2 | 1718-555 | HOOD W/O DECALS-04 PANTHER | 1 | $1,090.95 | |
| 3 | 0717-148 | FOAM, HOOD-MIDDLE UPR RH | 1 | $15.11 | |
| 3 | 0717-149 | FOAM, HOOD-MIDDLE UPR LH | 1 | $14.95 | |
| 4 | 0717-164 | FOAM, HOOD-UPR RH | 1 | $6.95 | |
| 4 | 0717-165 | FOAM, HOOD-UPPER LH | 1 | $6.89 | |
| 5 | 0717-138 | FOAM, HOOD-MIDDLE-00 ZR | 1 | $5.95 | |
| 6 | 0717-140 | FOAM, HOOD-REAR RH-00 ZR | 1 | $13.95 | |
| 6 | 0717-141 | FOAM, HOOD-REAR LH-00 ZR | 1 | $12.95 | |
| 7 | 3611-485 | DECAL, WARNING-GENL & BRAKE-ENG & FRNCH | 1 | $35.95 | |
| 8 | 3611-970 | DECAL, CAUTION-ENG/BTRY/FUEL-ENG &FRCH | 1 | $41.95 | |
| 9 | 3611-580 | DECAL,REVERSE | 1 | $25.95 | |
| 10 | 1606-938 | FOIL,HOOD-RH | 1 | $54.95 | |
| 10 | 1606-939 | FOIL, HOOD-LH | 1 | $75.95 | |
| 11 | 1606-720 | HINGE, HOOD | 1 | $45.95 | |
| 12 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 13 | 6611-115 | DECAL, HOOD, "ARCTIC CAT"-RED | 1 | $13.95 | |
| 14 | 6611-116 | DECAL, HOOD-UPPER-RH-PANTHER | 1 | $89.95 | |
| 14 | 6611-117 | DECAL, HOOD-UPPER-LH-PANTHER | 1 | $71.95 | |
| 15 | 6611-110 | DECAL, HOOD-LOWER-RH-PANTHER | 1 | $74.95 | |
| 15 | 6611-111 | DECAL, HOOD-LOWER-LH-PANTHER | 1 | $74.95 | |
| 16 | 6611-651 | DECAL, HOOD-CREST- 05 PA 370 | 1 | $33.95 | |
| 17 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 18 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 19 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 20 | 3606-908 | WINDSHIELD, MED -TOURING-05 PA 370 | 1 | $203.95 | |
| 21 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 22 | 1606-158 | CABLE HOOD 35.0" | 1 | $15.11 | |
| 25 | 1623-016 | SCREW, HEX DOME HEAD -1/4-20 x1.24 Z&Y | 1 | $27.95 | |
| 26 | 1606-872 | DUCT,AIR OUT(2001 Z) | 1 | $66.95 | |
| 27 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 28 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 29 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 30 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 31 | 1606-829 | DUCT, AIR IN | 1 | $82.95 | |
| 32 | 0623-257 | SCREW,SELF TAP-HWH #8X1/2 TYPE A | 1 | $1.09 | |
| 33 | 0617-453 | FOAM,AIR DUCT-TOP | 1 | $21.95 | |
| 34 | 0617-454 | FOAM,AIR DUCT-SIDE | 1 | $26.95 | |
| 35 | 0617-452 | FOAM,AIR DUCT-FRT | 1 | $26.95 |
