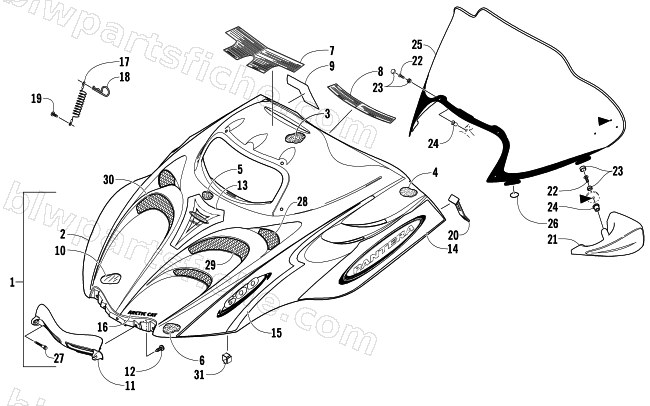

2005 Arctic Cat PANTERA 600 EFI — HOOD AND WINDSHIELD ASSEMBLY
2005 PANTERA 600 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-613 | HOOD W/DECALS-PANTERA | 1 | $1,374.95 | |
| 2 | 1718-634 | HOOD W/O DECALS-PANTERA | 1 | $1,057.95 | |
| 3 | 0717-148 | FOAM, HOOD-MIDDLE UPR RH | 1 | $15.11 | |
| 3 | 0717-149 | FOAM, HOOD-MIDDLE UPR LH | 1 | $14.95 | |
| 4 | 0717-146 | FOAM, HOOD-UPR RH | 1 | $14.95 | |
| 4 | 0717-147 | FOAM, HOOD-UPR LH | 1 | $14.95 | |
| 5 | 0717-138 | FOAM, HOOD-MIDDLE-00 ZR | 1 | $5.95 | |
| 6 | 0717-140 | FOAM, HOOD-REAR RH-00 ZR | 1 | $13.95 | |
| 6 | 0717-141 | FOAM, HOOD-REAR LH-00 ZR | 1 | $12.95 | |
| 7 | 3611-485 | DECAL, WARNING-GENL & BRAKE-ENG & FRNCH | 1 | $35.95 | |
| 8 | 3611-970 | DECAL, CAUTION-ENG/BTRY/FUEL-ENG &FRCH | 1 | $41.95 | |
| 9 | 3611-580 | DECAL,REVERSE | 1 | $25.95 | |
| 10 | 1606-938 | FOIL,HOOD-RH | 1 | $54.95 | |
| 10 | 1606-939 | FOIL, HOOD-LH | 1 | $75.95 | |
| 11 | 2606-757 | HINGE,HOOD-PEWTER-ROUTED | 1 | $43.95 | |
| 12 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 13 | 6611-170 | DECAL, HOOD-CREST (PANTERA 600) | 1 | $41.95 | |
| 14 | 6611-166 | DECAL, HOOD-LOWER-RH-PANTERA | 1 | $102.95 | |
| 14 | 6611-167 | DECAL, HOOD-LOWER-LH-PANTERA | 1 | $99.95 | |
| 15 | 6611-164 | DECAL, HOOD-UPPER-RH-600 | 1 | $93.95 | |
| 15 | 6611-165 | DECAL, HOOD-UPPER-LH-600 | 1 | $93.95 | |
| 16 | 6611-171 | DECAL, HOOD-"ARCTIC CAT"-PEWTER | 1 | $20.95 | |
| 17 | 1606-158 | CABLE HOOD 35.0" | 1 | $15.11 | |
| 20 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 22 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 23 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 24 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 25 | 2606-366 | WINDSHIELD, MED-W/MIRROR HOLES | 1 | $200.95 | |
| 26 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 27 | 1623-016 | SCREW, HEX DOME HEAD -1/4-20 x1.24 Z&Y | 1 | $27.95 | |
| 28 | 2706-409 | SCREEN, VENT-HOOD-LH-PTD BLK | 1 | $32.95 | |
| 29 | 2706-407 | SCREEN, VENT-HOOD-CTR-PTD BLK | 1 | $65.95 | |
| 30 | 2706-408 | SCREEN, VENT-HOOD-RH-PTD BLK | 1 | $63.95 | |
| 31 | 0123-394 | CLIP CABLE | 1 | $1.37 |
