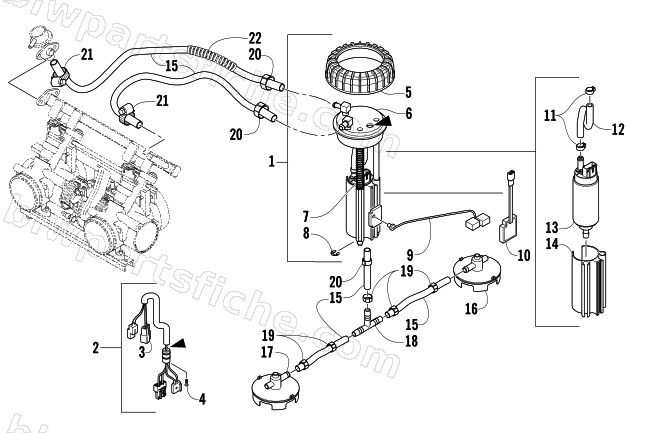

2005 Arctic Cat PANTERA 600 EFI — FUEL PUMP ASSEMBLY
2005 PANTERA 600 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1670-593 | PUMP,FUEL-EFI W/EFS-ASSY (PFA-42) | 1 | $595.95 | |
| 2 | 1670-652 | HARNESS,FUEL PUMP-ASSY | 1 | $117.95 | |
| 4 | 1670-412 | SCREW, RETAINING | 1 | $2.95 | |
| 5 | 1670-119 | NUT,RETAINING-FUEL PUMP FLANGE | 1 | $12.95 | |
| 6 | 1670-118 | SEAL,FUEL PUMP FLANGE (MASON) | 1 | $20.63 | |
| 7 | 1670-156 | SRING, COMPRESSION - FUEL PUMP | 1 | $4.95 | |
| 8 | 1670-244 | RING, STUD RETAINER - FUEL PUMP | 1 | $1.95 | |
| 9 | 0670-460 | ARM, FLOAT-FUEL PUMP (V/N 75-584) | 1 | $94.95 | |
| 10 | 1670-408 | ELEMENT, FUEL SENSOR-ASSY | 1 | $89.95 | |
| 11 | 1670-159 | CLAMP, HOSE - FUEL PUMP | 1 | $3.95 | |
| 12 | 1670-521 | HOSE,FUEL | 1 | $92.95 | |
| 13 | 1670-153 | PUMP ASSY, FUEL | 1 | $480.95 | |
| 14 | 1670-413 | HOUSING, FUEL PUMP-SENSOR STYLE | 1 | $75.95 | |
| 15 | 0610-075 | HOSE,GASLINE-10'ROLL | 1 | $150.95 | |
| 16 | 1670-618 | PICKUP,FUEL-SMALL/MP-13 VENT | 1 | $93.95 | |
| 17 | 1670-619 | PICKUP, FUEL-(MP12)SMALL NONVENTED | 1 | $69.95 | |
| 18 | 0670-235 | FITTING,TEE-5/16 | 1 | $4.54 | |
| 19 | 0610-563 | CLAMP, HOSE-13.2MM-15.7MM | 1 | $1.78 | |
| 20 | 0610-419 | CLAMP, HOSE (14.5), 12.0 MM TO 14.5 MM | 1 | $1.92 | |
| 21 | 0623-373 | CLAMP,HOSE #4 {6202} | 1 | $2.88 | |
| 22 | 0716-507 | LOOM,HI-TEMP (26" LONG) | 1 | $3.44 |
