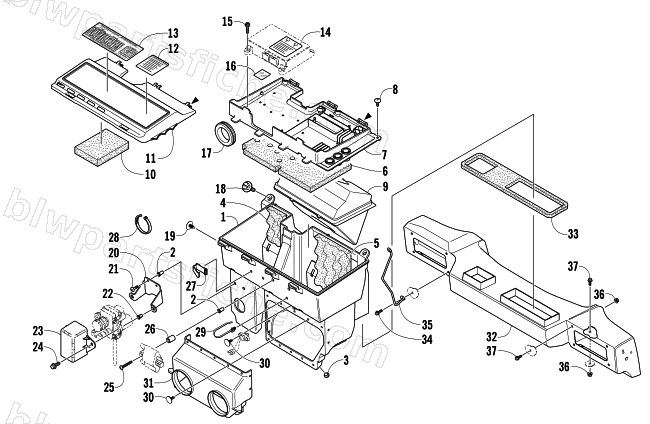

AIR SILENCER ASSEMBLY
2005 PANTERA 600 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-657 | SILENCER, AIR ASSY-2004 600 EFI | 1 | $129.95 | |
| 2 | 1623-127 | INSERT, AL SERIES ALS4-1024-225 | 1 | $5.09 | |
| 3 | 1606-038 | BUMPER, AIR SILENCER | 1 | $1.95 | |
| 6 | 0617-393 | FOAM,AIR SILENCER-TOP LID | 1 | $14.95 | |
| 7 | 1670-197 | COVER, AIR SILENCER,UNROUTED | 1 | $41.95 | |
| 8 | 0623-727 | SCREW,SELF TAP-TSPNH 10-16X5/8 TYPE AB Z | 1 | $1.37 | |
| 9 | 0670-879 | RESONATOR, Q-WAVE - INLET | 1 | $36.95 | |
| 10 | 0617-411 | FOAM,TOOL TRAY | 1 | $14.95 | |
| 11 | 1670-049 | COVER, TOOL TRAY | 1 | $61.95 | |
| 12 | 5611-146 | DECAL, CAUTION-AIRBOX | 1 | $13.95 | |
| 13 | 6611-444 | DECAL, JET CHART-05 PANTERA 600 | 1 | $32.95 | |
| 14 | 3611-403 | DECAL,INSTRUCTIONS-FUEL/EFI | 1 | $8.95 | |
| 15 | 0623-564 | SCREW,TAPPING #10 X 1.00 HWH | 1 | $3.57 | |
| 16 | 2606-007 | FOIL, PROTECTIVE | 1 | $1.78 | |
| 17 | 1670-145 | GROMMET,VEV | 1 | $6.06 | |
| 18 | 0623-780 | SCREW,HEX SHOULDER - 10/32 | 1 | $16.49 | |
| 19 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 | |
| 20 | 0770-618 | PLATE, MTG-COMPONENT/SERVO-PTD BLK | 1 | $17.87 | |
| 21 | 8017-400 | SCREW,MACH-TSTRH 10-24X3/4 GR2 Z&Y | 1 | $0.68 | |
| 22 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 | |
| 24 | 8020-044 | SCREW,CAP-HFH 1/4-20 X 1.250 Z&Y | 1 | $3.85 | |
| 25 | 8017-406 | SCREW,MACH-TSTRH 10-24X1.75 GR2 Z&Y | 1 | $1.95 | |
| 26 | 0107-630 | SPACER,FUEL PUMP | 1 | $11.95 | |
| 27 | 0623-792 | CLIP,WIRE/HOSE PUSH MOUNT | 1 | $3.99 | |
| 28 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 29 | 0623-677 | CABLE TIE,PUSH MOUNT-X MAS CLIP | 1 | $1.09 | |
| 30 | 0623-165 | CLIP, X-MAS TREE-5/32 | 1 | $1.50 | |
| 31 | 1670-373 | BOOT, AIR SILENCER | 1 | $101.95 | |
| 32 | 1670-326 | PLENUM, AIR SILENCER-ROUTED-EFI | 1 | $98.95 | |
| 33 | 0617-245 | SEAL, AIR BOX/PLENUM | 1 | $6.06 | |
| 34 | 8020-040 | SCREW,CAP-HFH 1/4-20 X 0.750 Z&Y | 1 | $1.78 | |
| 35 | 0707-705 | WIREFORM, GUIDE-HARNESS/ROPE-PTD BLK | 1 | $16.49 | |
| 36 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 37 | 8020-039 | SCREW,CAP-HFH 1/4-20 X 0.625 Z&Y | 1 | $0.95 |
