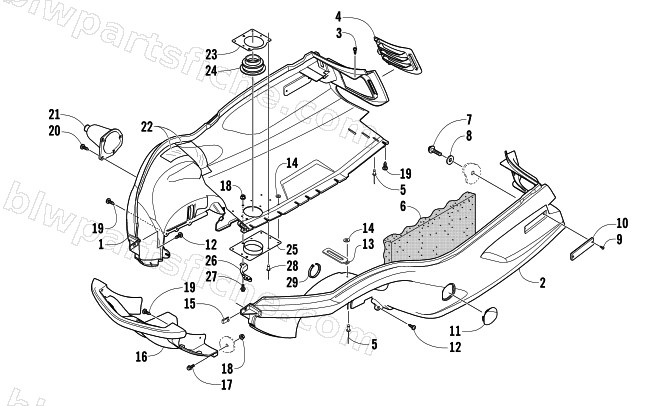

2005 Arctic Cat PANTERA 550 (S2005PTCCAUSB) — BELLY PAN AND FRONT BUMPER ASSEMBLY
2005 PANTERA 550 (S2005PTCCAUSB)
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2706-894 | BELLY PAN, ROUTED-RH-PT 550 | 1 | $254.95 | |
| 2 | 2706-663 | BELLY PAN, LH GUN SILVER-ROUTED | 1 | $224.95 | |
| 3 | 0623-378 | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 1 | $0.26 | |
| 4 | 3606-532 | LOUVER, AIR INTAKE-RH-GUN METAL SILVER | 1 | $24.95 | |
| 4 | 3606-533 | LOUVER, AIR INTAKE-LH-GUN METAL SILVER | 1 | $24.95 | |
| 5 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 6 | 0617-315 | FOAM,BELLYPAN LH | 1 | $33.95 | |
| 7 | 0623-647 | SCREW,SELF TAP-HWH 1/4X2.0 A Z&Y | 1 | $0.95 | |
| 8 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 9 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 10 | 0606-526 | REFLECTOR,FRONT-YELLOW | 1 | $3.02 | |
| 11 | 3606-630 | PANEL, CLUTCH ACCESS-GUN METAL SILVER | 1 | $20.95 | |
| 12 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 13 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 14 | 0123-149 | WSHR,FLAT 11/64X3/8X.030TH Z&Y | 1 | $2.06 | |
| 15 | 0623-427 | NUT,U-1/4X20 | 1 | $6.83 | |
| 16 | 2606-737 | BUMPER,FRONT-PEWTER-ROUTED | 1 | $145.95 | |
| 17 | 8020-040 | SCREW,CAP-HFH 1/4-20 X 0.750 Z&Y | 1 | $1.78 | |
| 18 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 19 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 20 | 0623-564 | SCREW,TAPPING #10 X 1.00 HWH | 1 | $3.57 | |
| 21 | 0605-332 | BOOT,STEERING-DRAG LINK-RH | 1 | $40.95 | |
| 21 | 0605-333 | BOOT,STEERING-DRAG LINK-LH | 1 | $28.95 | |
| 22 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 23 | 0712-881 | RING,EXHAUST OUTLET-UPPER-PTD BLK | 1 | $10.95 | |
| 24 | 0612-470 | BOOT,EXHAUST | 1 | $54.95 | |
| 25 | 0712-880 | RING,EXHAUST OUTLET-LOWER-PTD BLK | 1 | $13.95 | |
| 26 | 0712-879 | DEFLECTOR,EXHAUST-OUTLET-PTD BLK | 1 | $13.95 | |
| 27 | 8020-039 | SCREW,CAP-HFH 1/4-20 X 0.625 Z&Y | 1 | $0.95 | |
| 28 | 8060-508 | RIVET,BLIND-DH SS56 BLK | 1 | $0.26 | |
| 29 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
