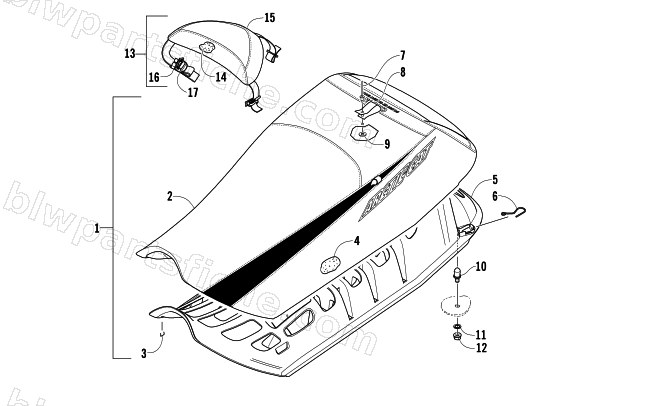

2005 Arctic Cat M7 EFI 141 — SEAT ASSEMBLY
2005 M7 EFI 141
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 7998-137 | SEAT, RED (05 MC)-SUB ASSY | 1 | $702.95 | |
| 1 | 7998-027 | SEAT,GRN (05 MC)-SUB ASSY | 1 | $710.95 | |
| 2 | 2706-739 | COVER,SEAT-MC-RED | 1 | $486.95 | |
| 2 | 2706-687 | COVER,SEAT-MC-GRN | 1 | $459.95 | |
| 3 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 4 | 2706-647 | FOAM,SEAT CUSHION-MC(89-94 ILD).48@4.95 | 1 | $117.95 | |
| 5 | 3606-430 | SEATBASE-INJ MOLD | 1 | $104.95 | |
| 6 | 1623-393 | CLIP,RETAINING SPRING-SEAT | 1 | $6.95 | |
| 7 | 8061-506 | RIVET,BLIND-LF SS54 BLACK | 1 | $0.95 | |
| 8 | 3606-813 | STRAP,HOLD-DOWN - SEAT BUN | 1 | $5.09 | |
| 9 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 10 | 1623-198 | STUD,LATCH-SEAT-D | 1 | $11.79 | |
| 11 | 0423-178 | WASHER,CRUSH | 1 | $1.78 | |
| 12 | 8048-426 | NUT,HEX FLG-TOP LOCK 5/16-18 GR F Z&Y | 1 | $1.23 | |
| 13 | 7998-026 | PAD,SEAT-REAR-ASSY | 1 | $108.95 | |
| 14 | 2706-698 | FOAM,SEAT BUN-.44@1.0 | 1 | $19.95 | |
| 15 | 2706-697 | COVER,SEAT BUN-BLK | 1 | $87.95 | |
| 16 | 1623-348 | CLIP,RETAINING-1" STRAP-BLK | 1 | $5.37 | |
| 17 | 1623-347 | CLIP,SELF-LOCKING-1" STRAP-BLK | 1 | $5.37 |
