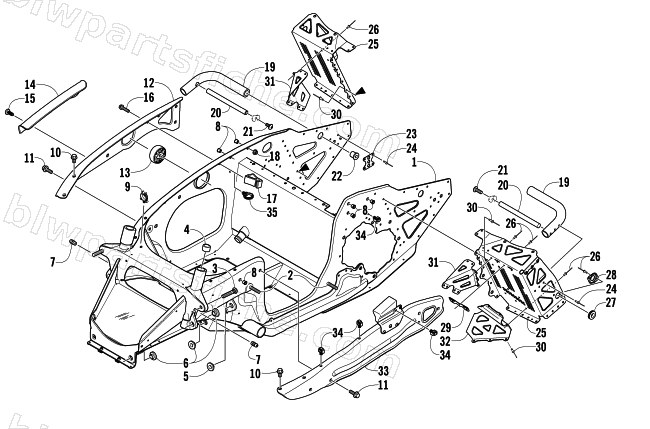

FRONT FRAME AND FOOTREST ASSEMBLY
2005 M7 EFI 141
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-988 | CHASIS,S/P ASSY-05 M 7 | 1 | $1,291.95 | |
| 2 | 1623-359 | BOLT,RIBBED CAR-5/16-18X1.75 | 1 | $2.06 | |
| 3 | 1623-019 | BOLT,RIB CAR-3/8-16X2.00 | 1 | $3.85 | |
| 4 | 0675-161 | BEARING-14DU12 | 1 | $16.49 | |
| 5 | 0607-656 | BUSHING, UPPER- A-ARM | 1 | $2.47 | |
| 6 | 0607-657 | BUSHING, LOWER- A-ARM | 1 | $2.47 | |
| 7 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 8 | 0623-581 | INSERT, A L SERIES AL57-518-150 5/16-18 | 1 | $3.16 | |
| 9 | 1623-171 | CLIP,SNAP | 1 | $2.88 | |
| 10 | 8020-040 | SCREW,CAP-HFH 1/4-20 X 0.750 Z&Y | 1 | $1.78 | |
| 11 | 8020-131 | SCREW,CAP-HFH 5/16-18 X0.875 G5 Z&Y | 1 | $1.50 | |
| 12 | 3606-416 | BRACE,SIDE PLATE-RH | 1 | $344.95 | |
| 13 | 0608-364 | MOUNT,ENGINE-45 DURO | 1 | $65.95 | |
| 14 | 3606-761 | PROTECTOR,MAIN HARNESS-FORMED | 1 | $20.63 | |
| 15 | 1623-353 | SCREW,SELF TAP-TSPNH 10-24 X 3/8 Z&Y | 1 | $1.64 | |
| 16 | 1623-204 | SCREW,PLASTITE-HWH 1/4-10X1.0 Z&Y | 1 | $1.23 | |
| 17 | 0608-449 | GUIDE,ROPE-WIDE | 1 | $7.95 | |
| 18 | 8041-426 | NUT,HEX THIN LOCK-NYL 5/16-18 Z&Y | 1 | $0.40 | |
| 19 | 2706-685 | TUBE,SUPPORT-FOOTREST-MACH | 1 | $22.01 | |
| 20 | 3606-775 | GUARD,SUPPORT-FOOTREST | 1 | $18.95 | |
| 21 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 22 | 1623-371 | SCREW,TUBE-13/16-16 X .75 | 1 | $14.95 | |
| 23 | 2706-580 | PLATE,BACKING-FRT ARM-PTD BLK | 1 | $15.11 | |
| 24 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 25 | 3706-296 | FOOTREST-RH-ASSY | 1 | $90.95 | |
| 25 | 3706-297 | FOOTREST-LH-ASSY | 1 | $90.95 | |
| 26 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 27 | 1623-529 | GROMMET,RUBBER-.50 IDX1.00 ODX.08 GRV | 1 | $3.85 | |
| 28 | 3606-837 | PLATE,RETAINING-GROMMET-FORMED | 1 | $62.95 | |
| 29 | 0607-835 | PLATE,MTG-CLUTCH GUARD/FOOTREST | 1 | $3.57 | |
| 30 | 1623-264 | RIVET,CHERRY-CCPQ06-04 | 1 | $3.16 | |
| 31 | 3606-904 | GUSSET,FOOTREST-UPPER-RH | 1 | $62.95 | |
| 31 | 3606-905 | GUSSET,FOOTREST-UPPER-LH | 1 | $160.95 | |
| 32 | 3606-907 | GUSSET,FOOTREST-LOWER-LH | 1 | $74.95 | |
| 33 | 3706-921 | BRACE,SIDE PLATE-LH-ASSY | 1 | $120.95 | |
| 34 | 1623-406 | CLIP,ROUTING-LOCKING-.350 | 1 | $2.47 | |
| 35 | 0623-454 | CLIP,SNAP-IN (SPEEDO-CABLE) | 1 | $2.95 |
