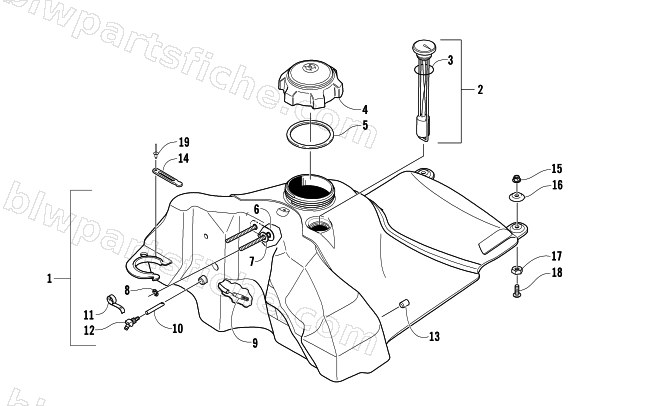

2005 Arctic Cat M5 141 — GAS TANK ASSEMBLY
2005 M5 141
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-707 | R/B 0770-767 | 1 | $421.95 | |
| 2 | 1670-725 | GAUGE,FUELW/GASKET | 1 | $108.95 | |
| 4 | 1670-447 | CAP,VENTED-GAS | 1 | $53.95 | |
| 6 | 0605-769 | PLATE,MTG-STEERING POST-PLATED | 1 | $52.95 | |
| 7 | 1623-408 | WASHER,RUBBER-1.00X.281X.063 | 1 | $1.50 | |
| 8 | 1623-355 | RETAINER,PUSHNUT-5/16" | 1 | $2.47 | |
| 9 | 0510-358 | STRAINER,GAS TANK | 1 | $6.83 | |
| 10 | 6101-001 | HOSE,.235 ID X .370 OD (100') | 1 | $892.95 | |
| 10 | 6101-009 | HOSE,.235 ID X .370 OD (50') | 1 | $469.95 | |
| 11 | 0670-289 | TAPE, TEFLON-ROLL | 1 | $6.34 | |
| 12 | 1670-321 | OUTLET, GAS TANK-5/16-45 DEG FITTING | 1 | $5.51 | |
| 13 | 1623-259 | INSERT,10/24 X 3/8 | 1 | $1.95 | |
| 14 | 3606-173 | STRAP,HOLDDOWN-AIR SILENCER | 1 | $5.37 | |
| 15 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 16 | 0123-765 | WASHER,CUP .265X1.06 12 GA | 1 | $5.78 | |
| 17 | 1623-077 | NUT,AL-1/4-20X3/4 HEX-0.25 THK | 1 | $3.85 | |
| 18 | 8017-582 | R/B 1623-689 | 1 | $0.65 | |
| 19 | 8061-628 | RIVET,BLIND-LF AA66 BLACK | 1 | $0.95 |
