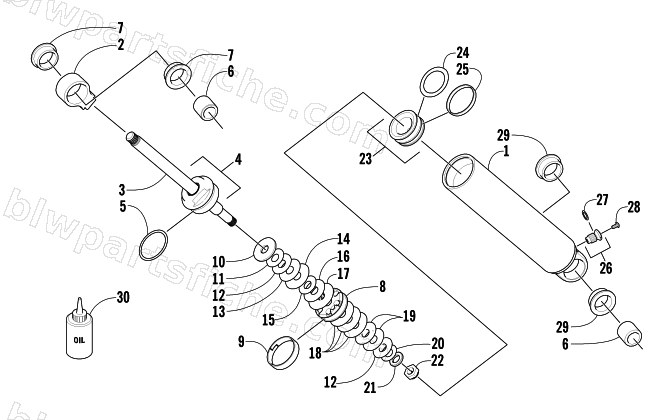

2005 Arctic Cat KING CAT 900 — REAR SUSPENSION REAR ARM SHOCK ABSORBER
2005 KING CAT 900
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1704-298 | SHOCK,REAR ARM-ASSY (IMPACT EXT) | 1 | $549.95 | |
| 1 | 2604-598 | BODY,RR SHOCK-1.75 x 7.374 -IMP EXTR | 1 | $239.95 | |
| 2 | 1604-763 | EYELET, SHOCK-1.00(PWD METAL) | 1 | $20.95 | |
| 3 | 2604-163 | ROD,SHOCK-REAR ARM-7.24"-CHROME | 1 | $72.95 | |
| 4 | 4604-126 | BEARING, ENDCAP - LONG - W/BLEED ASSY | 1 | $49.95 | |
| 5 | 1604-271 | O-RING,OUTER | 1 | $2.47 | |
| 6 | 1604-397 | SLEEVE, EYELET - INNER - .950 | 1 | $3.99 | |
| 7 | 1604-262 | BUSHING,SHOCK-.125 FLANGE | 1 | $3.02 | |
| 8 | 1603-314 | PISTON,0.039 ORIFICE | 1 | $120.95 | |
| 9 | 1604-274 | STRAP, PISTON - TEFLON | 1 | $24.77 | |
| 10 | 1604-272 | WASHER, TOP OUT -1.125 x .094 | 1 | $1.37 | |
| 11 | 2603-065 | VALVE,SHOCK- .900 DIA X .010 | 1 | $5.95 | |
| 12 | 2603-076 | VALVE,SHOCK-1.000 DIA X .012 | 1 | $5.95 | |
| 13 | 2603-096 | VALVE,SHOCK-1.100 DIA X .012 | 1 | $5.95 | |
| 14 | 2603-125 | VALVE,SHOCK-1.250 DIA X .010 | 1 | $5.51 | |
| 15 | 2603-062 | VALVE,SHOCK- .900 DIA X .006 | 1 | $5.95 | |
| 16 | 2603-095 | VALVE,SHOCK-1.100 DIA X .010 | 1 | $5.95 | |
| 17 | 2603-135 | VALVE,SHOCK-1.300 DIA X .010 | 1 | $5.95 | |
| 18 | 2603-127 | VALVE,SHOCK-1.250 DIA X .015 | 1 | $5.95 | |
| 19 | 0603-888 | VALVE, SHOCK 1.100 X.015 | 1 | $6.89 | |
| 20 | 0603-880 | VALVE, SHOCK .900 X.012(040-12-090) | 1 | $12.95 | |
| 21 | 1604-273 | WASHER, BACKUP - .620 x .094 | 1 | $1.95 | |
| 22 | 0623-696 | NUT, FLEX - 3/8-24 UNF Z&Y | 1 | $2.95 | |
| 23 | 0704-791 | PISTON,BLEEDLESS-IFP-ASSY | 1 | $33.95 | |
| 24 | 2604-152 | O-RING,FLOATING PISTON | 1 | $2.88 | |
| 25 | 2604-153 | TEFLON BAND,FLOATING PISTON-1.459" | 1 | $26.95 | |
| 26 | 2604-649 | VALVE,PRESSURE-ASSY | 1 | $26.95 | |
| 27 | 0830-168 | ORING,7.6454 ID X 1.778 CS | 1 | $1.09 | |
| 28 | 0624-433 | SCREW, MACH - HSBH 8-32X1/4 SS | 1 | $0.68 | |
| 29 | 2604-164 | BUSHING,SHOCK-REAR ARM-GRAY | 1 | $9.59 | |
| 30 | 4639-366 | S/M SHOCK OIL-1 QUART | 1 | $21.95 |
