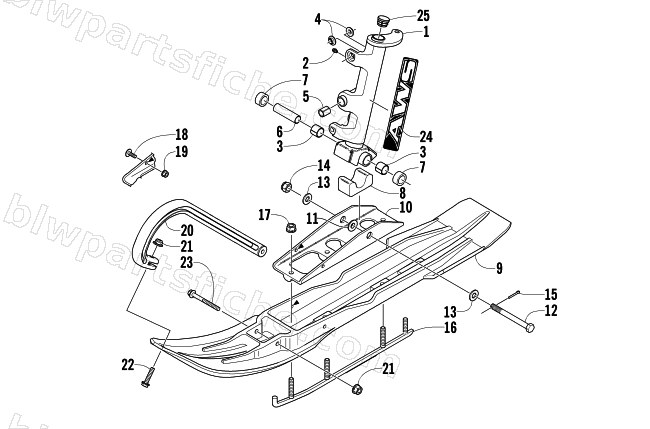

2005 Arctic Cat KING CAT 900 EFI EARLY BUILD — SKI AND SPINDLE ASSEMBLY
2005 KING CAT 900 EFI EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1703-388 | SPINDLE/HOUSING-DK PEWTER-R/H-FAB | 1 | $331.95 | |
| 1 | 1703-389 | SPINDLE/HOUSING-DK PEWTER-L/H-FAB | 1 | $324.95 | |
| 2 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 3 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 4 | 0603-647 | INSERT,ALUM.-SPINDLE | 1 | $5.78 | |
| 5 | 0603-083 | BEARING,GARLOCK 10DU12 | 1 | $8.21 | |
| 6 | 2603-548 | AXLE,SPINDLE | 1 | $19.25 | |
| 7 | 1603-908 | SPACER,SPINDLE-PLASTIC SKI | 1 | $13.73 | |
| 8 | 2603-290 | DAMPER,SKI-NARROW (90 DURO) | 1 | $15.11 | |
| 10 | 1703-079 | SADDLE,SKI-W/HOLES-ASSY | 1 | $90.95 | |
| 11 | 0603-621 | INSERT-SKI SADDLE | 1 | $4.95 | |
| 12 | 0623-552 | SCREW,CAP-HH 7/16-20 X 4.50 W/HOLE | 1 | $12.35 | |
| 13 | 0623-728 | WSHR, FLAT-HARD(.469 X 1.125 X .100 THK) | 1 | $3.02 | |
| 14 | 0123-296 | NUT,FLEX-FULL 7/16-20 | 1 | $6.47 | |
| 15 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 16 | 1703-003 | SKAG, LONG-4'CRB/HDWELD,PTD BLK | 1 | $65.95 | |
| 17 | 8048-486 | NUT,HEX FLG-TOP LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 18 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 19 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 21 | 8048-426 | NUT,HEX FLG-TOP LOCK 5/16-18 GR F Z&Y | 1 | $1.23 | |
| 22 | 8020-135 | SCREW,CAP-HFH 5/16-18 X 1.50 G5 Z&Y | 1 | $1.64 | |
| 23 | 8020-143 | SCREW,CAP-HFH 5/16-18 X 3.50 G5 Z&Y | 1 | $21.95 | |
| 24 | 6611-454 | DECAL,SPINDLE-ORN (ER) | 1 | $42.95 | |
| 25 | 0623-831 | CAP, SPINDLE (RDR-10-1420) | 1 | $1.50 |
