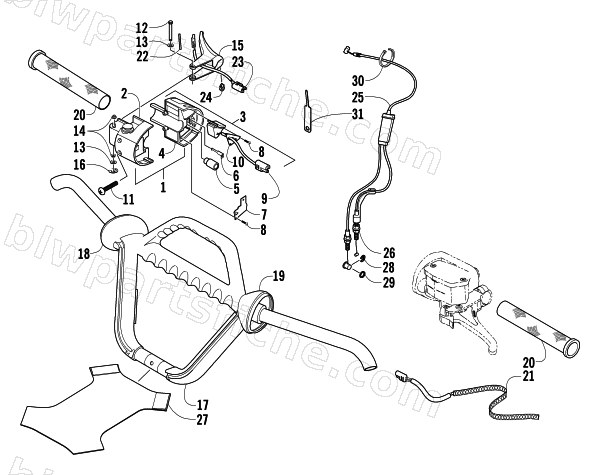

2005 Arctic Cat KING CAT 900 EFI EARLY BUILD — HANDLEBAR AND CONTROLS
2005 KING CAT 900 EFI EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0609-520 | CONTROL,TH-SPLIT 3W W/ HI/LO | 1 | $162.95 | |
| 2 | 0609-521 | CONTROL,TH-STOP SWITCH HALF | 1 | $94.95 | |
| 3 | 0609-522 | CONTROL,TH-HALF ASSY HI/LO | 1 | $124.95 | |
| 4 | 0609-495 | CONTROL,TH-WARMER SW HALF HI/LO | 1 | $40.95 | |
| 5 | 0609-497 | PLUG,RUBBER-IDLE SWITCH | 1 | $14.95 | |
| 6 | 0609-498 | CLIP,RETAINING-TH CABLE | 1 | $16.95 | |
| 7 | 0609-496 | PLATE,RETAINER-IDLE SWITCH | 1 | $14.95 | |
| 8 | 0609-312 | SCREW, PH-3X16 SELFTAPPING | 1 | $1.95 | |
| 9 | 0609-523 | SWITCH ASSY,HI/LO TW - TH (RH) | 1 | $73.95 | |
| 11 | 0609-492 | SCREW,RETAINING-M5X35 | 1 | $4.95 | |
| 12 | 0609-317 | AXLE, THROTTLE LEVER | 1 | $6.95 | |
| 13 | 0609-036 | WASHER,FLAT | 1 | $0.95 | |
| 14 | 0609-501 | WASHER,SHOULDER-THROTTLE | 1 | $12.35 | |
| 15 | 0609-368 | LEVER, TH-35MM W/O IDLE SWITCH | 1 | $31.95 | |
| 16 | 0609-040 | E-RING .187 SHAFT | 1 | $1.92 | |
| 17 | 0705-387 | HANDLEBAR, MC STYLE-MOLDED ASSY | 1 | $127.95 | |
| 18 | 0605-556 | END CAP,THROTTLE-RH | 1 | $18.95 | |
| 19 | 0605-557 | END CAP,BRAKE-LH | 1 | $6.95 | |
| 20 | 1606-442 | GRIP,HANDLEBAR-RH-6.25" | 1 | $19.25 | |
| 21 | 0609-724 | ELEMENT,HW-HI/LO STRIP W/#32-R/H | 1 | $82.95 | |
| 22 | 0617-248 | PAD, INSULATOR-THUMB WARMER | 1 | $1.37 | |
| 23 | 0609-619 | ELEMENT, THUMBWARMER-HI/LOW | 1 | $62.95 | |
| 24 | 0623-262 | CLIP, WIRE-TW 1/4" | 1 | $1.39 | |
| 25 | 0687-148 | CABLE, THROTTLE - DUAL EFI | 1 | $147.95 | |
| 27 | 0705-905 | WRAP,STEERING ADJ-H SHAPE | 1 | $24.77 | |
| 28 | 0124-057 | E-RING | 1 | $1.64 | |
| 29 | 0124-056 | WASHER | 1 | $13.73 | |
| 30 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 31 | 1639-963 | KIT, THROTTLE CABLE TOOL | 1 | $3.95 |
