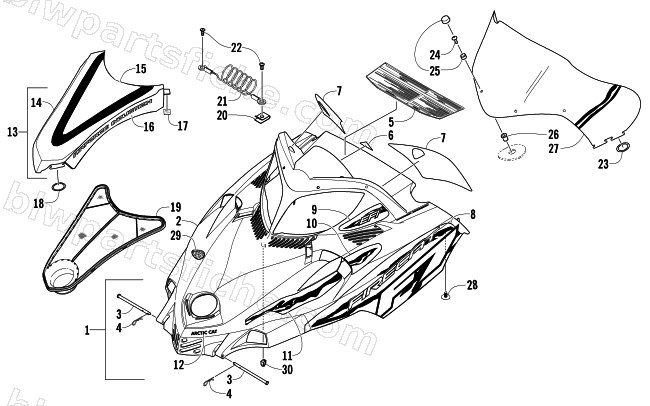

2005 Arctic Cat FIRECAT 700 EFI SNO PRO — HOOD AND WINDSHIELD ASSEMBLY
2005 FIRECAT 700 EFI SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-648 | HOOD W/DECALS-BLK (F7 EFI) | 1 | $1,344.95 | |
| 1 | 1718-661 | HOOD W/DECALS-ORN (F7 EFI) | 1 | $1,344.95 | |
| 1 | 1718-643 | HOOD W/DECALS-GRN (F7 EFI) | 1 | $1,344.95 | |
| 2 | 1718-636 | HOOD W/O DECALS-BLK | 1 | $1,242.95 | |
| 2 | 1718-638 | HOOD W/O DECALS-ORN | 1 | $1,242.95 | |
| 2 | 1718-666 | HOOD W/O DECALS-PEARL CAT GRN | 1 | $1,090.95 | |
| 3 | 1623-026 | PIN,CLEVIS-1/4 | 1 | $33.95 | |
| 4 | 0623-847 | CLIP, HAIRPIN | 1 | $0.95 | |
| 5 | 4611-496 | DECAL, CAUTION/WARNING | 1 | $39.95 | |
| 7 | 5611-998 | DECAL,HOOD-CONSOLE RH | 1 | $88.95 | |
| 7 | 5611-999 | DECAL,HOOD-CONSOLE LH | 1 | $72.95 | |
| 8 | 5611-970 | DECAL,HOOD-LWR BLK RH "F7" | 1 | $167.95 | |
| 8 | 5611-971 | DECAL,HOOD-LWR BLK LH "F7" | 1 | $167.95 | |
| 8 | 6611-212 | DECAL,HOOD-LWR ORG RH "F7" | 1 | $117.95 | |
| 8 | 6611-213 | DECAL,HOOD-LWR ORG LH "F7" | 1 | $114.95 | |
| 8 | 5611-952 | DECAL,HOOD-LWR GRN RH "F7" | 1 | $112.95 | |
| 8 | 5611-953 | DECAL,HOOD-LWR GRN LH "F7" | 1 | $112.95 | |
| 9 | 5611-972 | DECAL,HOOD LIGHT-BLK RH "EFI" | 1 | $191.95 | |
| 9 | 5611-973 | DECAL,HOOD LIGHT-BLK LH "EFI" | 1 | $29.95 | |
| 9 | 6611-214 | DECAL,HOOD LIGHT-ORG RH "EFI" | 1 | $106.95 | |
| 9 | 6611-215 | DECAL,HOOD LIGHT-ORG LH "EFI" | 1 | $106.95 | |
| 9 | 5611-954 | DECAL,HOOD LIGHT-GRN RH "EFI" | 1 | $27.95 | |
| 9 | 5611-955 | DECAL,HOOD LIGHT-GRN LH "EFI" | 1 | $27.95 | |
| 10 | 5611-976 | DECAL,HOOD-VENT BLK UPR RH | 1 | $21.95 | |
| 10 | 5611-977 | DECAL,HOOD-VENT BLK UPR LH | 1 | $21.95 | |
| 10 | 6611-218 | DECAL,HOOD-VENT ORG UPR RH | 1 | $90.95 | |
| 10 | 6611-219 | DECAL,HOOD-VENT ORG UPR LH | 1 | $88.95 | |
| 10 | 5611-958 | DECAL,HOOD-VENT GRN UPR RH | 1 | $22.01 | |
| 10 | 5611-959 | DECAL,HOOD-VENT GRN UPR LH | 1 | $22.01 | |
| 11 | 5611-978 | DECAL,HOOD-VENT BLK LWR RH | 1 | $36.95 | |
| 11 | 5611-979 | DECAL,HOOD-VENT BLK LWR LH | 1 | $125.95 | |
| 11 | 6611-220 | DECAL,HOOD-VENT ORG LWR RH | 1 | $158.95 | |
| 11 | 6611-221 | DECAL,HOOD-VENT ORG LWR LH | 1 | $88.95 | |
| 11 | 5611-960 | DECAL,HOOD-VENT GRN LWR RH | 1 | $36.95 | |
| 11 | 5611-961 | DECAL,HOOD-VENT GRN LWR LH | 1 | $150.95 | |
| 12 | 4611-855 | DECAL,HOOD-"ARCTIC CAT" YELLOW | 1 | $13.73 | |
| 12 | 3611-187 | DECAL, HOOD-"ARCTIC CAT"-BLK | 1 | $26.95 | |
| 13 | 1718-655 | COVER, HOOD-BLK W/BLK DECALS | 1 | $261.95 | |
| 13 | 1718-662 | COVER, HOOD-BLK W/ORN DECALS | 1 | $307.95 | |
| 13 | 1718-654 | COVER, HOOD-BLK W/GRN DECALS | 1 | $298.95 | |
| 14 | 2706-031 | COVER,HOOD-SNOW SEPERATOR-PTD BLK | 1 | $574.95 | |
| 15 | 6611-001 | DECAL,COVER-CREST | 1 | $49.95 | |
| 16 | 5611-962 | DECAL,COVER-BLK RH | 1 | $33.95 | |
| 16 | 5611-963 | DECAL,COVER-BLK LH | 1 | $32.95 | |
| 16 | 6611-206 | DECAL,COVER-ORG RH | 1 | $33.95 | |
| 16 | 6611-207 | DECAL,COVER-ORG LH | 1 | $33.95 | |
| 16 | 5611-944 | DECAL,COVER-GRN RH | 1 | $33.95 | |
| 16 | 5611-945 | DECAL,COVER-GRN LH | 1 | $33.95 | |
| 17 | 2606-007 | FOIL, PROTECTIVE | 1 | $1.78 | |
| 18 | 2606-801 | O-RING,HOOD | 1 | $5.92 | |
| 19 | 3606-150 | SCREEN,HOOD-AIR INTAKE | 1 | $79.95 | |
| 20 | 1623-052 | NUT,U | 1 | $0.95 | |
| 21 | 2606-726 | CABLE,HOOD-17.00 | 1 | $20.63 | |
| 22 | 0623-302 | SCREW,SELF TAP-HWH #12X1/2 TYPE | 1 | $0.26 | |
| 23 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 24 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 25 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 26 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 27 | 3606-250 | WINDSHIELD,LOW ALL BLK | 1 | $204.95 | |
| 27 | 3606-582 | WINDSHIELD,BLK-W/ORG FIRE | 1 | $228.95 | |
| 27 | 3606-458 | WINDSHIELD,BLK-W/GRN FIRE | 1 | $236.95 | |
| 28 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 | |
| 29 | 0617-466 | FOAM,HOOD | 1 | $215.95 | |
| 30 | 0123-394 | CLIP CABLE | 1 | $1.37 |
