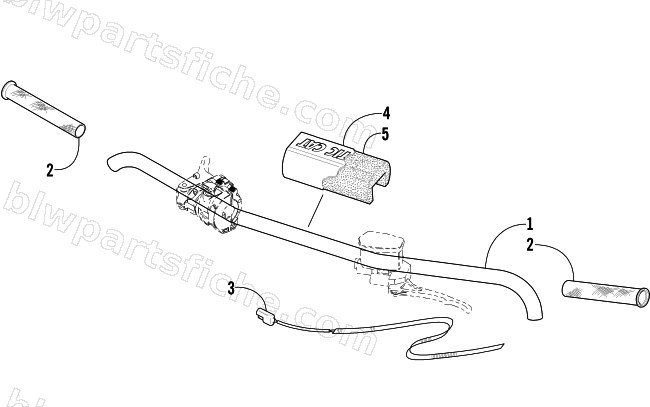

2005 Arctic Cat FIRECAT 700 EFI R — HANDLEBAR ASSEMBLY
2005 FIRECAT 700 EFI R
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0705-417 | HANDLEBAR,W/HOOKS-PTD BLK | 1 | $77.95 | |
| 2 | 1606-442 | GRIP,HANDLEBAR-RH-6.25" | 1 | $19.25 | |
| 2 | 2606-400 | GRIP, HANDLEBAR-LH-8.00" | 1 | $17.87 | |
| 3 | 0609-626 | ELEMENT,HW-RH H/M/L W/#32 | 1 | $94.95 | |
| 3 | 0609-627 | ELEMENT,HW-LH H/M/L W/#32 | 1 | $94.95 | |
| 4 | 1705-038 | WRAP,HANDLEBAR PAD-ASSY | 1 | $43.95 | |
| 5 | 0619-926 | FOAM,HANDLEBAR PAD-CTL | 1 | $26.95 |
