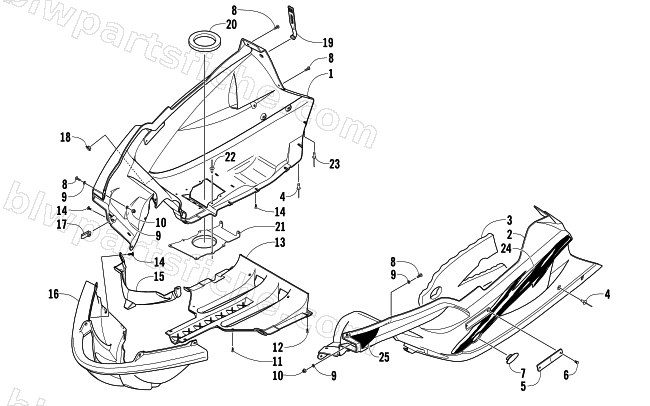

2005 Arctic Cat FIRECAT 700 EFI R — BELLY PAN ASSEMBLY
2005 FIRECAT 700 EFI R
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2606-646 | BELLY PAN,RH-INJ MOLD-BLACK | 1 | $313.95 | |
| 2 | 2606-647 | BELLY PAN,LH-INJ MOLD-BLACK | 1 | $197.95 | |
| 3 | 0617-443 | FOAM,BELLYPAN-LH | 1 | $43.95 | |
| 4 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 5 | 0606-526 | REFLECTOR,FRONT-YELLOW | 1 | $3.02 | |
| 6 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 7 | 2606-650 | PANEL,CLUTCH ACCESS-BLACK | 1 | $32.95 | |
| 8 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 9 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 10 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 11 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 12 | 1623-031 | R/B 2623-165 | 1 | $3.95 | |
| 13 | 3606-085 | BELLY PAN,CENTER-BLK | 1 | $244.95 | |
| 13 | 3606-502 | BELLY PAN,CENTER-PEARL CAT GRN | 1 | $291.95 | |
| 13 | 3606-578 | BELLY PAN,CENTER-FIRE RED | 1 | $87.95 | |
| 14 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 15 | 2606-911 | SCREEN,FRT BUMPER | 1 | $34.95 | |
| 16 | 4606-040 | BELLY PAN,FRT BUMPER-BLK | 1 | $232.95 | |
| 16 | 4606-041 | BELLY PAN,FRT BUMPER-PEARL CAT GRN | 1 | $232.95 | |
| 16 | 4606-042 | BELLY PAN,FRT BUMPER-FIRE RED | 1 | $174.95 | |
| 17 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 18 | 3606-050 | PIN, RESONATOR MTG | 1 | $20.63 | |
| 19 | 2606-624 | STRAP,HOLDDOWN-HOOD | 1 | $13.73 | |
| 20 | 1612-603 | SEAL,EXH OUTLET | 1 | $57.95 | |
| 21 | 1612-686 | DEFLECTOR,EXH-STAMPED | 1 | $122.95 | |
| 22 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 23 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 24 | 6611-002 | DECAL,BELLYPAN-RH | 1 | $69.95 | |
| 24 | 6611-003 | DECAL,BELLYPAN-LH | 1 | $69.95 | |
| 25 | 5611-946 | DECAL,BELLYPAN-FWD GRN RH | 1 | $27.95 | |
| 25 | 5611-947 | DECAL,BELLYPAN-FWD GRN LH | 1 | $27.95 | |
| 25 | 5611-982 | DECAL,BELLYPAN-FWD RED RH | 1 | $27.95 | |
| 25 | 5611-983 | DECAL,BELLYPAN-FWD RED LH | 1 | $27.95 |
