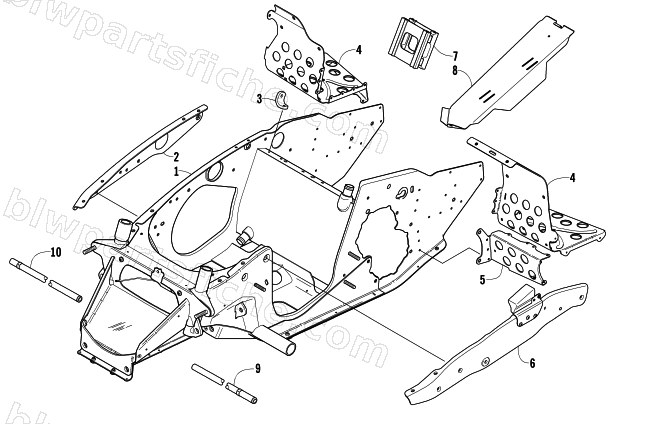

2005 Arctic Cat FIRECAT 600 EFI R — FRONT FRAME AND STEERING COMPONENTS JOKER BLACK
2005 FIRECAT 600 EFI R
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1707-026 | CHASSIS,S/P ASSY-06 F.C.(ACT)-PTD BLK | 1 | $1,339.95 | |
| 2 | 2706-806 | BRACE,SIDE PLATE-RH-PTD BLK | 1 | $68.95 | |
| 3 | 3706-018 | SUPPORT,SIDE PLATE-PTD BLK | 1 | $11.95 | |
| 4 | 3706-020 | FOOTREST,RH-PTD BLK | 1 | $100.95 | |
| 4 | 3706-021 | FOOTREST,LH-PTD BLK | 1 | $97.95 | |
| 5 | 3706-022 | BRKT,SUPPORT FOOTREST-RH-PTD BLK | 1 | $23.95 | |
| 5 | 3706-023 | BRKT,SUPPORT FOOTREST-LH-PTD BLK | 1 | $23.95 | |
| 6 | 2706-818 | BRACE,SIDE PLATE-UPR LH-PTD ASSY | 1 | $133.95 | |
| 7 | 0705-958 | RISER,4.5" HANDLEBAR-BLK ANODIZED | 1 | $88.95 | |
| 8 | 0707-799 | GUARD,CLUTCH-PTD BLK | 1 | $78.95 | |
| 9 | 0605-681 | TUBE,TIE ROD-BLK ANODIZED-.625X12.68" | 1 | $34.95 | |
| 10 | 0605-682 | TUBE,TIE ROD-BLK ANODIZED | 1 | $34.95 |
