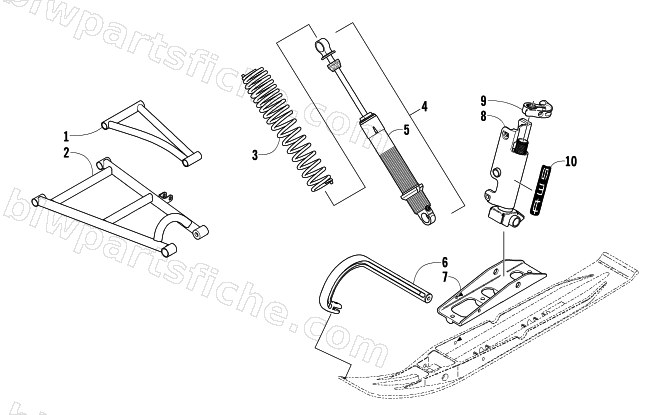

2005 Arctic Cat FIRECAT 600 EFI LIMITED EDITION SNO PRO — FRONT SUSPENSION
2005 FIRECAT 600 EFI LIMITED EDITION SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1703-426 | A-ARM,UPR BLK-FABR | 1 | $208.95 | |
| 2 | 1703-734 | A-ARM,FRT LWR-FABR RH BLK | 1 | $220.95 | |
| 2 | 1703-735 | A-ARM,FRT LWR-FABR LH BLK | 1 | $220.95 | |
| 6 | 0603-624 | HANDLE,PLASTIC-BLACK | 1 | $32.95 | |
| 7 | 1703-632 | SADDLE, SKI- ASSY- PTD BLK | 1 | $74.95 | |
| 8 | 1703-724 | SPINDLE,RH-FABR BLK | 1 | $331.95 | |
| 8 | 1703-725 | SPINDLE,LH-FABR BLK | 1 | $326.95 | |
| 9 | 1703-659 | ARM,STEERING-SPINDLE-PNT BLK | 1 | $66.95 | |
| 10 | 6611-278 | DECAL,SPINDLE | 1 | $16.49 |
