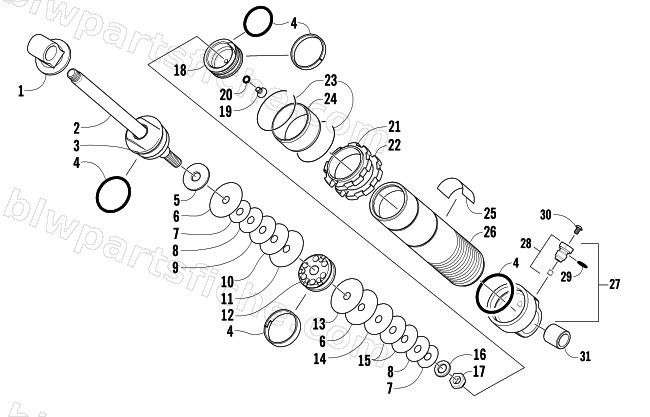

2005 Arctic Cat FIRECAT 500 SNO PRO — REAR SUSPENSION FRONT ARM SHOCK ABSORBER
2005 FIRECAT 500 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2704-066 | SHOCK,FRT ARM-11.29"-IFP- FOX | 1 | $392.59 | |
| 1 | 0604-625 | EYELET, SHOCK-ASSY | 1 | $95.95 | |
| 2 | 2604-872 | SHAFT, CHROME.498 X 5.85" | 1 | $114.59 | |
| 3 | 2604-812 | BEARING,ENDCAP -.498" X .960"-ASSY | 1 | $194.95 | |
| 4 | 2604-815 | SEAL/BEARING-REBUILD KIT | 1 | $92.95 | |
| 5 | 0603-540 | WASHER, TOP OUT-1.125OD X .378 ID X.093 | 1 | $16.49 | |
| 6 | 0603-347 | VALVE,1.250X.010(3/8ID) | 1 | $13.95 | |
| 7 | 0603-335 | VALVE, .800X.010(3/8ID) | 1 | $12.95 | |
| 8 | 0603-338 | VALVE, .900X.010(3/8ID) | 1 | $14.95 | |
| 9 | 0603-881 | VALVE, SHOCK 1.000 X.012(3/8ID) | 1 | $6.95 | |
| 10 | 0603-882 | VALVE, SHOCK 1.100 X.012(3/8ID) | 1 | $12.95 | |
| 11 | 0603-891 | VALVE, SHOCK 1.300 X.012 | 1 | $12.95 | |
| 12 | 2604-412 | PISTON,.055 DIA HOLE | 1 | $58.95 | |
| 13 | 0603-883 | VALVE, SHOCK 1.250 X.012(3/8ID) | 1 | $6.95 | |
| 14 | 0603-344 | VALVE,1.100X.010(3/8ID) | 1 | $12.95 | |
| 15 | 0603-341 | VALVE,1.000X.010(3/8ID) | 1 | $6.95 | |
| 16 | 0603-389 | WASHER,BACKUP | 1 | $12.95 | |
| 17 | 0603-301 | NUT,CAP-FOX SHOCK | 1 | $6.95 | |
| 18 | 2604-816 | PISTON,FLOATING-ASSY | 1 | $116.95 | |
| 19 | 1604-316 | SCREW, RELIEF W/ O-RING | 1 | $4.95 | |
| 20 | 1604-425 | O-RING(FOX ONLY) | 1 | $4.95 | |
| 21 | 2604-840 | RING,PRELOAD-2.40 OD X .600 TLG | 1 | $50.95 | |
| 22 | 2604-841 | RING,PRELOAD LOCK-2.40 OD X .300 TLG | 1 | $50.95 | |
| 23 | 2603-245 | RETAINER,.062 CS X 1.54 OD-WEAR SLEEVE | 1 | $6.89 | |
| 24 | 2603-246 | GUIDE,SPRING-ALUM BODY | 1 | $26.95 | |
| 25 | 2603-475 | DECAL,SHOCK BODY-ZERO PRO-5.100X.800 | 1 | $22.01 | |
| 26 | 2604-873 | BODY,SHOCK-ALUM-5.555" | 1 | $350.95 | |
| 27 | 2604-817 | BODY,CAP-ALUM BODY-ASSY | 1 | $164.95 | |
| 28 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 29 | 1604-318 | O-RING-END CAP FITTING(FOX ONLY) | 1 | $11.95 | |
| 30 | 0624-097 | SCREW, MACH HSBH #8-32X.25 (SS) | 1 | $0.85 | |
| 31 | 1604-791 | BUSHING,SHOCK-.890ID X .800 | 1 | $15.11 | |
| 32 | 4639-368 | S/M SYN SHOCK OIL MED WT-1 QUART | 1 | $27.95 |
