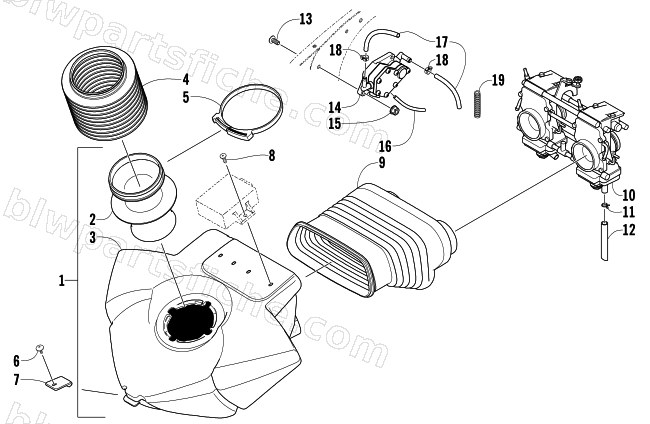

AIR SILENCER ASSEMBLY
2005 FIRECAT 500 SNO PRO
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-611 | SILENCER,AIR-ASSY (RB 0770-720) | 1 | $125.95 | |
| 2 | 1670-473 | INLET,AIR SILENCER | 1 | $30.95 | |
| 3 | 1670-774 | SILENCER,AIR-ASSY | 1 | $101.95 | |
| 4 | 1670-514 | TUBE, INLET HOSE | 1 | $47.95 | |
| 5 | 1623-132 | CLAMP,SNP100 | 1 | $12.35 | |
| 6 | 1623-031 | R/B 2623-165 | 1 | $3.95 | |
| 7 | 3606-146 | HOLDDOWN,AIR SILENCER | 1 | $12.35 | |
| 8 | 1623-204 | SCREW,PLASTITE-HWH 1/4-10X1.0 Z&Y | 1 | $1.23 | |
| 9 | 1670-582 | BOOT, CARB-ASSY (500 D) | 1 | $100.95 | |
| 10 | 1670-569 | CARB,TM38-B379 | 1 | $1,369.95 | |
| 11 | 0623-652 | CLAMP,HOSE-WIRE(CP10101) | 1 | $1.78 | |
| 12 | 0610-442 | HOSE, DRAIN (1.5") | 1 | $4.40 | |
| 13 | 8017-582 | R/B 1623-689 | 1 | $0.65 | |
| 14 | 1670-416 | PUMP,FUEL-500 CARB | 1 | $56.95 | |
| 15 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 16 | 0610-007 | HOSE, IMPULSE 3/16 25' | 1 | $102.95 | |
| 17 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 17 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 18 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 | |
| 19 | 0716-558 | LOOM,PROTECTIVE-10' (0619-342) | 1 | $16.49 |
