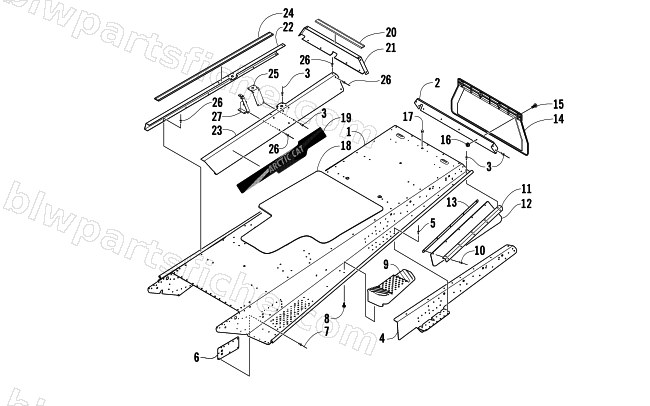

2005 Arctic Cat BEARCAT WIDE TRACK — TUNNEL ASSEMBLY
2005 BEARCAT WIDE TRACK
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-362 | TUNNEL,S/P ASSY-'03 BC | 1 | $1,008.95 | |
| 2 | 2706-288 | PLATE,END TUNNEL-PTD BLK | 1 | $84.95 | |
| 3 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 4 | 0707-752 | BRKT,REAR SUSP-WELD'T-RH-PTD BLK | 1 | $66.95 | |
| 4 | 0707-751 | BKT,REAR SUSP-WELD'T-LH-PTD BLK | 1 | $97.95 | |
| 5 | 0123-418 | RIVET, SOLID ALUM-.156 X.312 | 1 | $0.68 | |
| 6 | 2706-277 | PLATE,BODY REINF-PTD BLK | 1 | $27.95 | |
| 7 | 0623-072 | RIVET,SOLID ALUM-156 X370 | 1 | $0.15 | |
| 9 | 1606-478 | FOOTREST-RH | 1 | $30.95 | |
| 10 | 8060-428 | RIVET,BLIND-DH AA56 BLK | 1 | $0.81 | |
| 11 | 2706-179 | RETAINER,SIDE-SNOWFLAP-PTD BLK | 1 | $14.95 | |
| 12 | 0616-660 | SNOWFLAP,SIDE | 1 | $66.95 | |
| 13 | 0616-709 | STRAP,SIDE SNOWFLAP | 1 | $6.95 | |
| 14 | 3606-740 | SNOWFLAP-BCWT | 1 | $125.95 | |
| 15 | 8017-580 | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 Z&Y | 1 | $2.06 | |
| 16 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 17 | 0623-562 | PLUG,HOLE-3/8 DIA-BLK | 1 | $1.37 | |
| 18 | 2606-748 | PAD, TOOL BOX | 1 | $56.95 | |
| 19 | 6611-154 | DECAL, TUNNEL-RH | 1 | $47.95 | |
| 19 | 6611-155 | DECAL, TUNNEL-LH | 1 | $47.95 | |
| 20 | 2606-924 | SEAL,SEAT BASE-REAR | 1 | $16.49 | |
| 21 | 2706-283 | PLATE,RISER-CAP-PTD BLK | 1 | $48.95 | |
| 22 | 2706-914 | RISER,SEAT-RH-PTD BLK | 1 | $51.95 | |
| 23 | 2706-915 | RISER,SEAT-LH-PTD BLK | 1 | $51.95 | |
| 24 | 2606-923 | SEAL,SEAT BASE-SIDE | 1 | $20.95 | |
| 25 | 2706-282 | BRKT,RISER REINF-PTD BLK | 1 | $5.95 | |
| 26 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 27 | 2706-280 | PLATE,HOLDDOWN-FUEL-RH-PTD BLK | 1 | $13.95 | |
| 27 | 2706-281 | PLATE,HOLDDOWN-FUEL-LH-PTD BLK | 1 | $14.95 |
