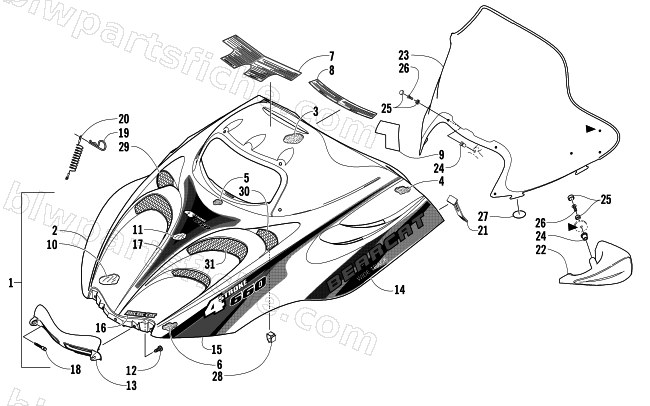

2005 Arctic Cat BEARCAT WIDE TRACK — HOOD AND WINDSHIELD ASSEMBLY
2005 BEARCAT WIDE TRACK
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-612 | HOOD W/DECALS-05 BCWT | 1 | $1,374.95 | |
| 2 | 1718-201 | HOOD, W/O DECALS | 1 | $1,057.95 | |
| 3 | 0717-166 | FOAM, HOOD- MIDDLE UPR RH | 1 | $11.95 | |
| 4 | 0717-140 | FOAM, HOOD-REAR RH-00 ZR | 1 | $13.95 | |
| 4 | 0717-141 | FOAM, HOOD-REAR LH-00 ZR | 1 | $12.95 | |
| 5 | 0717-138 | FOAM, HOOD-MIDDLE-00 ZR | 1 | $5.95 | |
| 6 | 0717-146 | FOAM, HOOD-UPR RH | 1 | $14.95 | |
| 6 | 0717-147 | FOAM, HOOD-UPR LH | 1 | $14.95 | |
| 7 | 3611-485 | DECAL, WARNING-GENL & BRAKE-ENG & FRNCH | 1 | $35.95 | |
| 8 | 3611-970 | DECAL, CAUTION-ENG/BTRY/FUEL-ENG &FRCH | 1 | $41.95 | |
| 9 | 3611-580 | DECAL,REVERSE | 1 | $25.95 | |
| 10 | 1606-938 | FOIL,HOOD-RH | 1 | $54.95 | |
| 10 | 1606-939 | FOIL, HOOD-LH | 1 | $75.95 | |
| 11 | 2606-935 | FOIL, PROTECTIVE-4 STROKE HOOD | 1 | $17.87 | |
| 12 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 13 | 1606-720 | HINGE, HOOD | 1 | $45.95 | |
| 14 | 6611-152 | DECAL, HOOD-LOWER-RH-BCWT | 1 | $99.95 | |
| 14 | 6611-153 | DECAL, HOOD-LOWER-LH-BCWT | 1 | $102.95 | |
| 15 | 6611-150 | DECAL, HOOD-UPPER-RH-BCWT | 1 | $89.95 | |
| 15 | 6611-151 | DECAL, HOOD-UPPER-LH-BCWT | 1 | $89.95 | |
| 16 | 5611-409 | DECAL, HOOD-BLUE "AC" | 1 | $18.95 | |
| 17 | 6611-156 | DECAL, HOOD, CREST-BCWT | 1 | $40.95 | |
| 18 | 1623-016 | SCREW, HEX DOME HEAD -1/4-20 x1.24 Z&Y | 1 | $27.95 | |
| 20 | 3606-746 | CABLE, HOOD-37" | 1 | $14.95 | |
| 21 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 23 | 2606-753 | WINDSHIELD, BC- HIGH- W/MIRROR HOLES | 1 | $213.95 | |
| 24 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 25 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 26 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 27 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 28 | 0123-394 | CLIP CABLE | 1 | $1.37 | |
| 29 | 2606-890 | SCREEN, VENT HOOD-RH-BLUE | 1 | $113.95 | |
| 30 | 2606-891 | SCREEN, VENT HOOD-LH-UPPER-BLUE | 1 | $113.95 | |
| 31 | 2606-889 | SCREEN, VENT HOOD-LH-CTR-BLUE | 1 | $60.95 |
