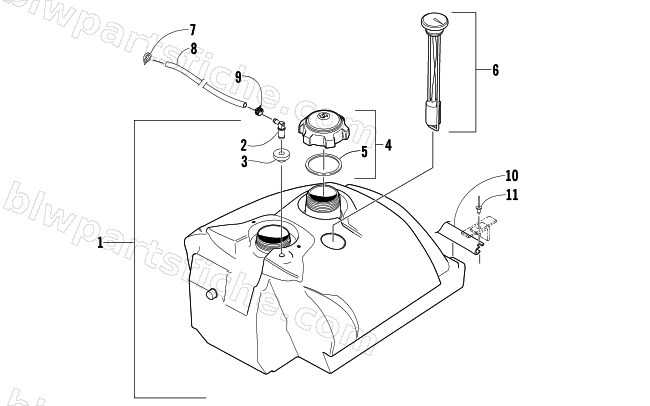

2005 Arctic Cat BEARCAT WIDE TRACK — GAS TANK ASSEMBLY
2005 BEARCAT WIDE TRACK
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0770-704 | TANK, GAS-S/P ASSY-O5 BCWT | 1 | $450.95 | |
| 2 | 1670-494 | ELBOW, 90 DEG-FUEL TANK | 1 | $3.99 | |
| 3 | 1670-325 | GROMMET, 1/4"-FUEL TANK | 1 | $2.88 | |
| 4 | 0470-541 | CAP, FUEL - 3.5" | 1 | $46.95 | |
| 5 | 1670-228 | SEAL,GAS CAP | 1 | $26.95 | |
| 6 | 1670-524 | GAUGE,FUEL W/ GASKET | 1 | $137.95 | |
| 7 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 | |
| 8 | 6101-001 | HOSE,.235 ID X .370 OD (100') | 1 | $892.95 | |
| 8 | 6101-009 | HOSE,.235 ID X .370 OD (50') | 1 | $469.95 | |
| 9 | 1623-233 | CLAMP, HOSE-10.41mm ID | 1 | $0.68 | |
| 10 | 2706-900 | BRKT, HOLDDOWN, FUEL TANK-PTD BLK-BCWT | 1 | $25.95 | |
| 11 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 |
