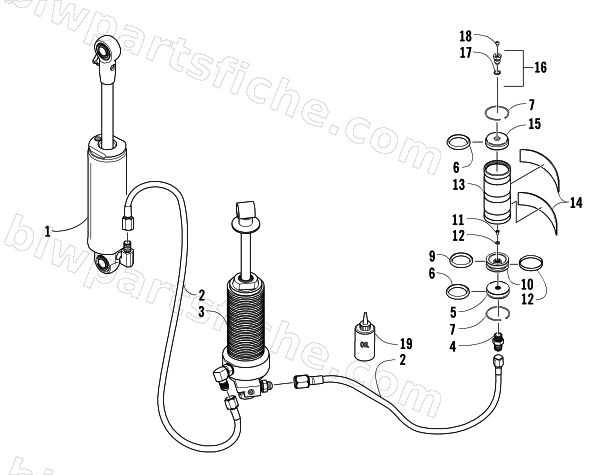

2005 Arctic Cat AC SNO PRO MOD — REAR SUSPENSION SHOCK ABSORBER ASSEMBLY
2005 AC SNO PRO MOD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1704-348 | SHOCK,REAR SUSP-ASSY | 1 | $1,917.95 | |
| 0 | 3639-107 | REBUILD, KIT- FOX REAR SUSP-CROSSLINK | 1 | $93.95 | |
| 1 | 1704-350 | SHOCK,REAR ARM | 1 | $923.95 | |
| 2 | 2604-967 | HOSE,STRAIGHT FEMALE/SWIVEL-18.5" | 1 | $168.95 | |
| 3 | 1704-349 | SHOCK,FRONT ARM | 1 | $778.95 | |
| 4 | 2604-944 | FITTING,ADAPTER-STRAIGHT HIGH FLOW | 1 | $60.95 | |
| 5 | 2604-968 | END CAP-RESERVOIR-ASSY | 1 | $81.95 | |
| 7 | 0604-992 | RETAINER, .062X1.850 ID ENDCAP | 1 | $6.06 | |
| 8 | 2604-517 | PISTON, INTERNAL FLOATING | 1 | $29.95 | |
| 11 | 1604-316 | SCREW, RELIEF W/ O-RING | 1 | $4.95 | |
| 13 | 1603-935 | RESERVOIR,3 GROOVES-BLK ANOD | 1 | $152.95 | |
| 14 | 1603-932 | DECAL,SHOCK-6.25X1.00 | 1 | $21.95 | |
| 15 | 1603-941 | END CAP,RESERVOIR-ASSY | 1 | $128.95 | |
| 16 | 0703-341 | VALVE,PRESSURE-ASS'Y | 1 | $56.95 | |
| 18 | 0624-097 | SCREW, MACH HSBH #8-32X.25 (SS) | 1 | $0.85 | |
| 19 | 4639-369 | S/M SYN SHOCK OIL MED/LT WT-1 QUART | 1 | $27.99 |
