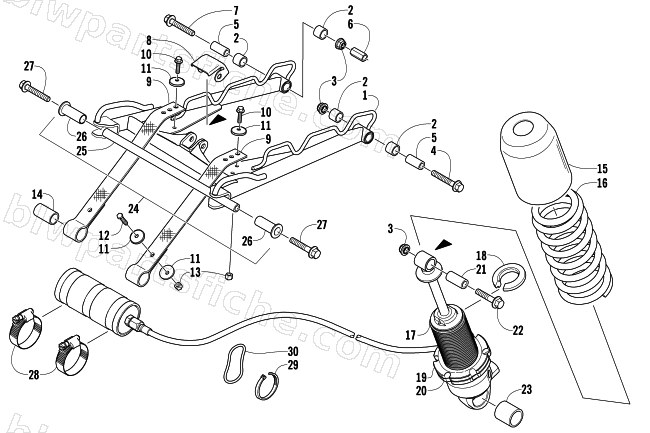

2005 Arctic Cat AC SNO PRO MOD — REAR SUSPENSION FRONT ARM ASSEMBLY
2005 AC SNO PRO MOD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1704-365 | ARM,FRONT-FABR | 1 | $412.95 | |
| 2 | 0604-889 | BUSHING,FRONT ARM | 1 | $3.71 | |
| 3 | 8047-486 | NUT,HEX FLG-NY LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 4 | 8020-228 | SCREW,CAP-HFH 3/8-16 X 2.25 G5 Z&Y | 1 | $2.75 | |
| 5 | 0104-629 | SPACER,FRONT ARM-PIVOT | 1 | $19.25 | |
| 6 | 2604-707 | STOP,PIVOT | 1 | $14.95 | |
| 7 | 8020-229 | SCREW,CAP-HFH 3/8-16 X 2.50 Z&Y | 1 | $16.49 | |
| 8 | 2604-112 | GUIDE,CENTER-FRT ARM-PTD BLK | 1 | $27.95 | |
| 9 | 2604-934 | STRAP,LIMITER-1.25"X16.15" | 1 | $39.95 | |
| 10 | 8002-041 | SCREW,CAP-HH 1/4-20 X.875 G5 Z&Y | 1 | $0.40 | |
| 11 | 0623-875 | WASHER, BACKING-7MM ID X 11/8OD | 1 | $1.78 | |
| 12 | 8002-043 | SCREW,CAP-HH 1/4-20 X1.125 G5 Z&Y | 1 | $0.68 | |
| 13 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 14 | 2604-962 | SPACER,ALUM-2.150" | 1 | $14.95 | |
| 15 | 0604-790 | COVER,SUSPENSION SPRING (SHORT) | 1 | $24.77 | |
| 16 | 3604-013 | SPRING,FRT ARM-TITANIUM | 1 | $552.95 | |
| 17 | 1704-349 | SHOCK,FRONT ARM | 1 | $778.95 | |
| 18 | 1603-890 | RETAINER,SPRING | 1 | $13.73 | |
| 19 | 0603-259 | NUT,RETAINER-SPRING | 1 | $5.65 | |
| 21 | 1603-531 | AXLE,SHOCK-FRT ARM | 1 | $4.26 | |
| 22 | 1623-220 | SCREW,CAP-HFH 3/8-16X2.25 GR 5 Z&Y | 1 | $6.95 | |
| 23 | 2604-407 | BUSHING,SHOCK-1.015 X .800 | 1 | $19.25 | |
| 24 | 1704-380 | AXLE,FRONT ARM ASSY-W/BUSHING | 1 | $85.95 | |
| 25 | 2604-932 | AXLE,FRONT ARM | 1 | $70.95 | |
| 26 | 2604-930 | BUSHING,AXLE | 1 | $31.95 | |
| 27 | 8020-225 | SCREW,CAP-HFH 3/8-16 X 1.50 Z&Y | 1 | $1.78 | |
| 28 | 0214-025 | CLAMP,HOSE #32 | 1 | $4.40 | |
| 29 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 30 | 1604-935 | SUPPORT, HOSE -REAR ARM (O-RING) | 1 | $4.26 |
