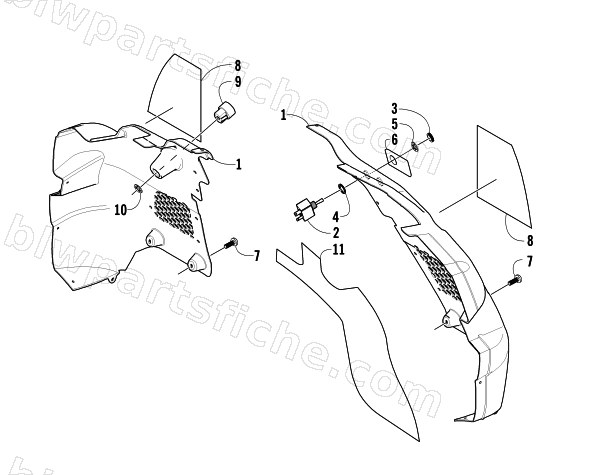

2005 Arctic Cat AC SNO PRO MOD — CONSOLE AND SWITCH ASSEMBLY
2005 AC SNO PRO MOD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3706-159 | CONSOLE,LH-ROUTED | 1 | $60.95 | |
| 2 | 0609-903 | SWITCH,TOGGLE-SPDT | 1 | $27.95 | |
| 3 | 0609-220 | NUT,KNURLED-BLACK (BRASS) | 1 | $1.95 | |
| 4 | 0623-153 | WASHER,NYLON 1/2X5/8-.030 | 1 | $2.95 | |
| 5 | 0123-985 | WASHER,INT LOCK .472 | 1 | $2.88 | |
| 6 | 7611-112 | DECAL,TOGGLE SWITCH-HAND WARMER | 1 | $21.95 | |
| 7 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 8 | 5611-926 | DECAL,CAUTION/WARNING-RH | 1 | $16.95 | |
| 8 | 5611-927 | DECAL,CAUTION/WARNING-LH | 1 | $18.95 | |
| 9 | 0116-469 | BUSHING, RECOIL | 1 | $5.51 | |
| 10 | 1623-841 | NUT,PUSH-.850X1.20" | 1 | $1.92 |
