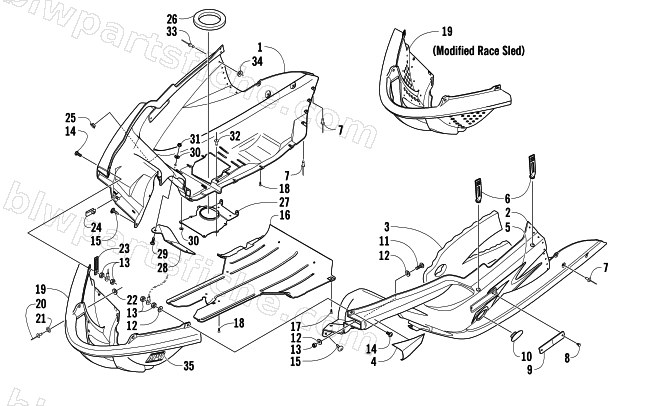

2005 Arctic Cat AC SNO PRO MOD — BELLY PAN ASSEMBLY
2005 AC SNO PRO MOD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2706-588 | BELLY PAN,BLK-RH ROUTED | 1 | $178.95 | |
| 2 | 2706-851 | BELLY PAN,BLK-LH ROUTED | 1 | $240.95 | |
| 4 | 5611-942 | DECAL,BELLYPAN-FRT RH | 1 | $29.95 | |
| 4 | 5611-943 | DECAL,BELLYPAN-FRT LH | 1 | $33.95 | |
| 5 | 6611-620 | DECAL,BELLY PAN-LWR RH | 1 | $65.95 | |
| 5 | 6611-621 | DECAL,BELLY PAN-LWR LH | 1 | $65.95 | |
| 6 | 1606-930 | STRAP, HOLDDOWN-HOOD | 1 | $12.35 | |
| 7 | 8061-628 | RIVET,BLIND-LF AA66 BLACK | 1 | $0.95 | |
| 8 | 0623-269 | CLIP, CHRISTMAS TREE | 1 | $1.23 | |
| 9 | 0606-526 | REFLECTOR,FRONT-YELLOW | 1 | $3.02 | |
| 10 | 2606-650 | PANEL,CLUTCH ACCESS-BLACK | 1 | $32.95 | |
| 11 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 12 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 13 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 14 | 8017-582 | R/B 1623-689 | 1 | $0.65 | |
| 15 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 16 | 3606-027 | BELLY PAN,CENTER-REAR | 1 | $191.95 | |
| 17 | 1623-031 | R/B 2623-165 | 1 | $3.95 | |
| 18 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 19 | 3706-079 | BUMPER,FRT-GRN ASSY | 1 | $149.95 | |
| 20 | 8060-209 | RIVET BLIND-DH AA46 | 1 | $0.95 | |
| 21 | 0116-074 | SNAP,BODY-CUSHION 61-0393-1183 | 1 | $1.64 | |
| 22 | 1623-153 | WASHER,BACKING | 1 | $0.95 | |
| 23 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 24 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 25 | 3606-050 | PIN, RESONATOR MTG | 1 | $20.63 | |
| 26 | 1612-408 | SEAL, EXH OUTLET | 1 | $70.95 | |
| 27 | 1612-788 | DEFLECTOR,EXH-STAMPED | 1 | $43.95 | |
| 28 | 3606-448 | PLATE,DEFLECTOR | 1 | $18.95 | |
| 29 | 8017-397 | SCREW,MACH-TSTRH 10-24X.5 GR2 Z&Y | 1 | $0.35 | |
| 30 | 0623-594 | WASHER,FLAT-.203 X .562 X .040 | 1 | $0.95 | |
| 31 | 8041-246 | NUT,HEX THIN LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 32 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 33 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 34 | 1623-236 | WASHER,BACK-UP 5/32-in. | 1 | $0.15 |
