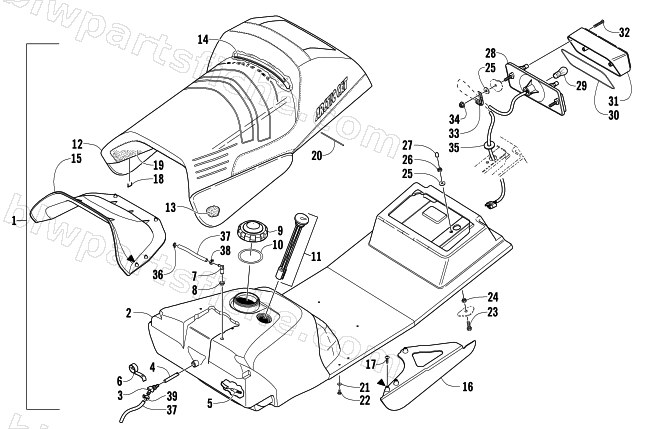

2004 Arctic Cat ZR 900 SNO PRO — GAS TANK, SEAT, AND TAILLIGHT ASSEMBLY
2004 ZR 900 SNO PRO
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-674 | SEAT, S/P ASSY-04 900 ZR GR/BL | 1 | $973.95 | |
| 1 | 1718-675 | SEAT, S/P ASSY-04 900 ZR RED/BL | 1 | $981.95 | |
| 2 | 0770-607 | TANK,GAS-03 ZR 900-SP ASSY | 1 | $427.95 | |
| 10 | 1670-228 | SEAL,GAS CAP | 1 | $26.95 | |
| 11 | 1670-241 | GAUGE, FUEL,W/GASKET - PRESS FIT | 1 | $102.95 | |
| 12 | 2706-267 | COVER,SEAT-W/GRN DECAL | 1 | $387.95 | |
| 12 | 2706-268 | COVER,SEAT-W/RED DECAL | 1 | $361.95 | |
| 13 | 0617-417 | FOAM, PAD-TUNNEL-02 TRIPLES | 1 | $10.95 | |
| 14 | 3606-363 | WIRE, SEAT-BENT | 1 | $3.44 | |
| 15 | 1606-126 | INSERT,SEAT FOAM | 1 | $90.95 | |
| 16 | 1606-518 | INSERT, SEAT PAD-RH-99 ZR | 1 | $62.95 | |
| 16 | 1606-519 | INSERT, SEAT PAD-LH-99 ZR | 1 | $102.95 | |
| 17 | 0623-783 | SCREW, ST-PAN HD-12 X 1 1/2-TYPE A Z&Y | 1 | $0.95 | |
| 18 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 19 | 2706-196 | FOAM, SEAT-12 GAL(77-82IDL),48@5.4 | 1 | $244.95 | |
| 20 | 2606-943 | WIRE, SEAT (11.4)-BENT | 1 | $1.95 | |
| 21 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 22 | 0623-309 | SCREW, SELF TAP-PHPNH 12-11X3/4 A Z&B | 1 | $0.40 | |
| 23 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 24 | 8041-366 | NUT,HEX THIN LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 25 | 0623-184 | WASHER,FLAT 1/4 X 1.0 Z&Y | 1 | $1.95 | |
| 26 | 8040-366 | NUT,HEX LOCK-NYL 1/4-20 Z&Y | 1 | $0.26 | |
| 28 | 0609-091 | HOUSING,TAILLIGHT WITH SOCKET & HARNESS | 1 | $81.95 | |
| 29 | 0109-460 | BULB,STOP/TAILLAMP | 1 | $2.06 | |
| 30 | 0609-092 | GASKET,TAILLIGHT | 1 | $13.73 | |
| 31 | 0609-090 | LENS,TAILLIGHT | 1 | $30.95 | |
| 32 | 0609-093 | SCREW,RETAIN(M4X25 SELF TAPP) | 1 | $0.68 | |
| 33 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 34 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 35 | 0617-136 | SEAL,FOAM-SEAT BASE | 1 | $2.06 | |
| 36 | 0623-101 | ROUTING CLIP,SNAP-IN | 1 | $5.51 | |
| 37 | 0610-015 | HOSE,GAS 1/4 X100' | 1 | $231.59 | |
| 37 | 0610-016 | HOSE,GAS 1/4 X25' | 1 | $117.95 | |
| 38 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 39 | 0124-045 | CLAMP,HOSE - .402/.449 DIA (SNP04) | 1 | $2.61 |
