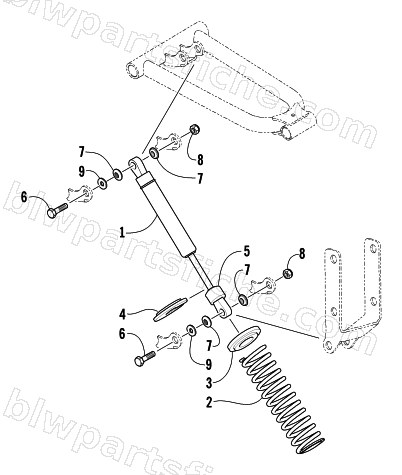

2004 Arctic Cat ZR 120 — FRONT SUSPENSION SHOCK ABSORBER
2004 ZR 120
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4639-137 | KIT, Z120 SKI SHOCK (PR) | 1 | $295.95 | |
| 2 | 0703-802 | SPRING,COMPRESSION (GREEN) | 1 | $89.95 | |
| 3 | 1603-862 | RETAINER-LOWER SPRING | 1 | $10.97 | |
| 4 | 1603-861 | RETAINER-UPPER SPRING | 1 | $9.59 | |
| 5 | 1603-872 | BUMPER, SHOCK - RUBBER | 1 | $2.95 | |
| 6 | 0623-897 | BOLT, SHOCK-HH 3/8-16X1.75 Z&Y (Z120) | 1 | $5.95 | |
| 7 | 1603-863 | BUSHING-SHOCK MTG | 1 | $5.95 | |
| 8 | 8040-486 | NUT,HEX LOCK-NYL 3/8-16 Z&Y | 1 | $0.26 | |
| 9 | 0623-450 | WASHER, FLAT .380X.938 | 1 | $0.75 |
