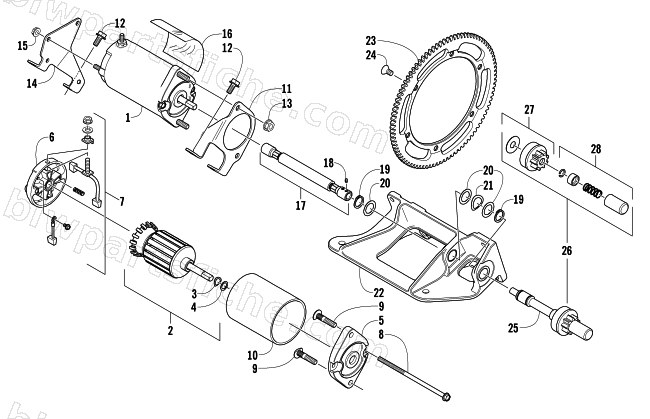

FLEX-DRIVE STARTER MOTOR ASSEMBLY (Optional)
2004 Z 570
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2639-148 | KIT, ELEC START-570 FAN | 1 | $869.95 | |
| 1 | 0745-356 | STARTER MOTOR ASSY,FLEX-B W/RIBBOLT/NUTS | 1 | $434.95 | |
| 2 | 0645-296 | ARMATURE ASS'Y, "B PAC" FLEX ES | 1 | $378.95 | |
| 3 | 0645-131 | WASHER,WAVE-ELECT START MOTOR | 1 | $3.95 | |
| 4 | 0645-293 | WASHER, THRUST-3/8" ID ES | 1 | $4.26 | |
| 5 | 0645-297 | CAP,DRIVE-"B PAC" FLEX ES W/ZO7 | 1 | $113.95 | |
| 6 | 0645-313 | CAP,COMM-LONG TB FLEX B W/BRUSHES | 1 | $132.95 | |
| 7 | 0645-275 | KIT, BRUSH & SPRING-ES HD SHORT | 1 | $71.95 | |
| 8 | 0645-128 | BOLT,THRU 1/4-20X5.75 | 1 | $63.95 | |
| 9 | 0623-093 | BOLT, 5/16-18X1 1/2 RIBBED | 1 | $2.47 | |
| 11 | 0745-193 | BRKT,MTG-FLEX ES-PTD BLK (ANGLED DRIVE) | 1 | $24.77 | |
| 12 | 0623-765 | SCREW,SELF TAP-HWH 5/16-18X.625 TT Z&Y | 1 | $1.23 | |
| 13 | 8048-426 | NUT,HEX FLG-TOP LOCK 5/16-18 GR F Z&Y | 1 | $1.23 | |
| 14 | 0745-194 | BRKT,MTG-FLEX ES-PTD BLK (ANGLEDCOMM) | 1 | $24.95 | |
| 15 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 16 | 0716-344 | FOIL,6" X 4" (0619-727) | 1 | $3.71 | |
| 17 | 0745-167 | SHAFT, FLEX-BONDED ES ASSY | 1 | $125.95 | |
| 18 | 0623-891 | SCREW,SET-HS LP 10-24 X 1/4 CP BLK (LOCP | 1 | $1.37 | |
| 19 | 0645-256 | SNAP RING,EXTL-17MM DIA | 1 | $3.71 | |
| 20 | 0645-254 | WASHER, THRUST-.68IDX1.00OD (WA3122) | 1 | $19.95 | |
| 21 | 0645-255 | WASHER, WAVE-11/16" | 1 | $3.85 | |
| 22 | 0745-154 | BRKT,ENG MTG-FRNT FLEX ES 560 W/ BUSH | 1 | $148.95 | |
| 23 | 0645-329 | RING GEAR,ELECTRIC START-LW | 1 | $287.95 | |
| 24 | 1623-128 | SCREW,MACH-TSFH 5/16-18X.562 Z&Y | 1 | $2.88 | |
| 25 | 0745-253 | DRIVE/SHAFT, PINION-FLEX .63 ASSY | 1 | $359.95 | |
| 26 | 0745-224 | KIT, DRIVE PINION-.63 | 1 | $106.95 | |
| 27 | 0637-265 | UPDATE KIT,STARTER PINION DRIVE(4-1-2) | 1 | $92.95 | |
| 28 | 0645-186 | STOPPER KIT,PINION-EL START | 1 | $50.95 |
