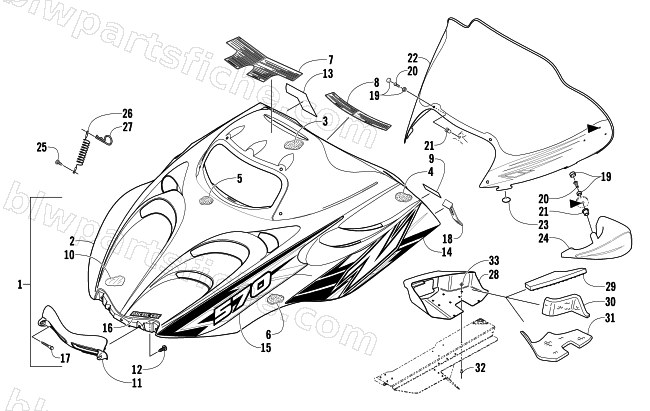

2004 Arctic Cat Z 570 LX — HOOD AND WINDSHIELD ASSEMBLY
2004 Z 570 LX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-402 | HOOD, W/ DECALS-GREEN Z 570 LX | 1 | $1,264.95 | |
| 1 | 1718-406 | HOOD W/DECALS-RED Z 570 LX | 1 | $1,312.95 | |
| 2 | 1718-451 | HOOD W/O DECALS-Z GREEN-LX | 1 | $1,057.95 | |
| 2 | 1718-323 | HOOD W/O DECALS-03 Z440/570 ESR | 1 | $1,090.95 | |
| 3 | 0717-148 | FOAM, HOOD-MIDDLE UPR RH | 1 | $15.11 | |
| 3 | 0717-149 | FOAM, HOOD-MIDDLE UPR LH | 1 | $14.95 | |
| 4 | 0717-164 | FOAM, HOOD-UPR RH | 1 | $6.95 | |
| 4 | 0717-165 | FOAM, HOOD-UPPER LH | 1 | $6.89 | |
| 5 | 0717-138 | FOAM, HOOD-MIDDLE-00 ZR | 1 | $5.95 | |
| 6 | 0717-140 | FOAM, HOOD-REAR RH-00 ZR | 1 | $13.95 | |
| 6 | 0717-141 | FOAM, HOOD-REAR LH-00 ZR | 1 | $12.95 | |
| 7 | 3611-485 | DECAL, WARNING-GENL & BRAKE-ENG & FRNCH | 1 | $35.95 | |
| 8 | 3611-970 | DECAL, CAUTION-ENG/BTRY/FUEL-ENG &FRCH | 1 | $41.95 | |
| 9 | 3611-509 | DECAL, WARNING-SEATING CAPACITY | 1 | $72.95 | |
| 10 | 1606-938 | FOIL,HOOD-RH | 1 | $54.95 | |
| 10 | 1606-939 | FOIL, HOOD-LH | 1 | $75.95 | |
| 11 | 1606-720 | HINGE, HOOD | 1 | $45.95 | |
| 12 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 13 | 3611-580 | DECAL,REVERSE | 1 | $25.95 | |
| 14 | 5611-236 | DECAL, HOOD-LOWER-RH-GREEN | 1 | $129.95 | |
| 14 | 5611-237 | DECAL, HOOD-LOWER-LH-GREEN | 1 | $105.95 | |
| 14 | 5611-286 | DECAL, HOOD-LOWER-RH-RED | 1 | $102.95 | |
| 14 | 5611-287 | DECAL, HOOD-LOWER-LH-RED | 1 | $106.95 | |
| 15 | 5611-242 | DECAL, HOOD-UPPER-RH-570-GREEN | 1 | $89.95 | |
| 15 | 5611-243 | DECAL, HOOD-UPPER-LH-570-GREEN | 1 | $89.95 | |
| 15 | 5611-292 | DECAL, HOOD-UPPER-RH-570-RED | 1 | $92.95 | |
| 15 | 5611-293 | DECAL, HOOD-UPPER-RH-570-RED | 1 | $92.95 | |
| 16 | 3611-187 | DECAL, HOOD-"ARCTIC CAT"-BLK | 1 | $26.95 | |
| 16 | 3611-679 | DECAL,HOOD-"ARCTIC CAT"- WHITE (CURVED) | 1 | $45.95 | |
| 17 | 1623-016 | SCREW, HEX DOME HEAD -1/4-20 x1.24 Z&Y | 1 | $27.95 | |
| 18 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 19 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 20 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 21 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 22 | 3606-044 | WSHLD, W/SCRN-GRN-W/MIR HLS USE 2606-366 | 1 | $203.95 | |
| 22 | 3606-078 | WINDSHIELD, W/SCREEN-RED-W/MIRROR HOLES | 1 | $227.95 | |
| 23 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 26 | 1606-158 | CABLE HOOD 35.0" | 1 | $15.11 | |
| 28 | 2606-370 | DUCT, AIR-OUT | 1 | $57.95 | |
| 29 | 0617-427 | FOAM, DUCT, AIR-OUT-570-TOP | 1 | $13.73 | |
| 30 | 0617-428 | FOAM, DUCT, AIR-OUT-570-SIDE | 1 | $9.59 | |
| 31 | 0617-425 | FOAM, DUCT, AIR-OUT-570-BOTTOM | 1 | $23.39 | |
| 32 | 8060-508 | RIVET,BLIND-DH SS56 BLK | 1 | $0.26 | |
| 33 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 |
