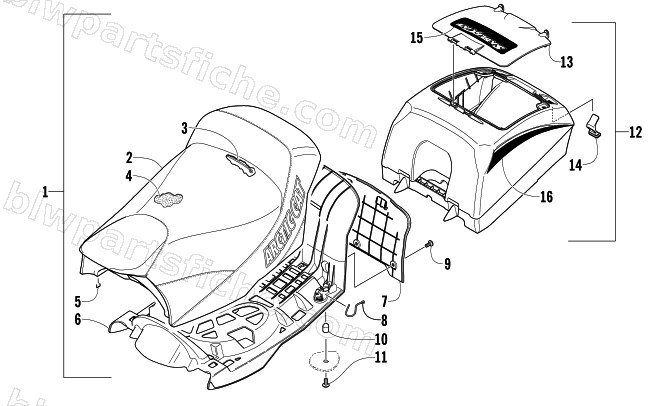

2004 Arctic Cat SABERCAT 600 EFI LX — SEAT AND STORAGE BOX ASSEMBLY
2004 SABERCAT 600 EFI LX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 7997-379 | SEAT, MFG ASSY (GRN S-CAT) | 1 | $724.95 | |
| 1 | 7997-167 | SEAT, MFG ASSY (SABERCAT RED) | 1 | $500.79 | |
| 2 | 2706-353 | COVER, SEAT-ASSY (GRN S-CAT) | 1 | $382.95 | |
| 2 | 2706-262 | COVER, SEAT (RED S-CAT) | 1 | $369.95 | |
| 4 | 0717-176 | FOAM, SEAT (85-90 ILD) .48@5.3 | 1 | $140.95 | |
| 5 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 6 | 3606-056 | SEAT BASE-STORAGE | 1 | $97.95 | |
| 7 | 3606-248 | PANEL, SEAT-REAR (SABERCAT) | 1 | $21.95 | |
| 8 | 1623-177 | CLIP,RETAINING SPRING-SEAT | 1 | $2.95 | |
| 9 | 1623-158 | SCREW,PLASTITE-TSPNH 1/4-10X.500 Z&BLK | 1 | $0.95 | |
| 10 | 1623-138 | LATCH, SEAT | 1 | $16.49 | |
| 11 | 8017-667 | SCREW,MACH-TSTRH 5/16-18 X .50 GR2 Z&Y | 1 | $3.16 | |
| 12 | 3606-074 | BOX, STORAGE-MFG ASSY | 1 | $260.95 | |
| 14 | 3606-357 | STRAP, HOLDDOWN-STORAGE | 1 | $3.44 | |
| 15 | 5611-521 | DECAL, COVER STORAGE(GRN) | 1 | $60.95 | |
| 15 | 5611-520 | DECAL, COVER STORAGE(RED) | 1 | $62.95 | |
| 16 | 5611-510 | DECAL, STORAGE-RH | 1 | $45.95 | |
| 16 | 5611-511 | DECAL, STORAGE-LH | 1 | $45.95 |
