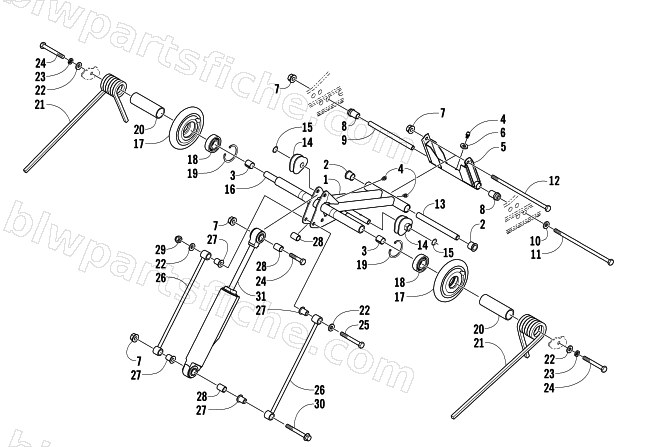

2004 Arctic Cat SABERCAT 600 EFI LX — REAR SUSPENSION REAR ARM ASSEMBLY
2004 SABERCAT 600 EFI LX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1704-005 | ARM, IDLER-FABR BLK | 1 | $231.95 | |
| 2 | 1604-100 | BUSHING,FLARED-BRONZE (.628 ID) | 1 | $6.75 | |
| 3 | 2604-147 | BEARING,GARLOCK-11DU14 | 1 | $8.21 | |
| 4 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 5 | 1704-019 | ARM, REAR-MACH-BLK (04 PROD) | 1 | $56.95 | |
| 6 | 1623-011 | WASHER- GREASE FITTING | 1 | $0.68 | |
| 7 | 8048-486 | NUT,HEX FLG-TOP LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 8 | 1604-307 | AXLE,SERRATED-REAR ARM (NO BEARING) | 1 | $54.95 | |
| 9 | 2604-665 | TUBE,AXLE-REAR ARM | 1 | $29.95 | |
| 10 | 8050-272 | WASHER,FLAT- 3/8 X .734 X .063 Z&Y | 1 | $0.26 | |
| 11 | 1623-037 | SCREW, CAP-HH 3/8-16X10 GD 8 Z&Y | 1 | $6.47 | |
| 12 | 1623-086 | SCREW,CAP-3/8-16 X 7.500 | 1 | $20.63 | |
| 13 | 2604-370 | AXLE,STEEL-.624X6.817 | 1 | $22.01 | |
| 14 | 1604-204 | BLOCK,SPRING-ADJUSTER-RH | 1 | $19.25 | |
| 14 | 1604-205 | BLOCK,SPRING-ADJUSTER-LH | 1 | $19.25 | |
| 15 | 0623-138 | RING,RETAINING-ADJ BLOCK 9/16 | 1 | $0.68 | |
| 16 | 2604-139 | AXLE,INNER CARRIAGE | 1 | $89.95 | |
| 17 | 2604-143 | WHEEL,IDL-5.35 W/1" ID (NO INSR) | 1 | $53.95 | |
| 18 | 0107-598 | BEARING,BALL-25MM | 1 | $12.35 | |
| 19 | 0123-798 | RING,INTERNAL-RETAINING | 1 | $1.64 | |
| 20 | 2604-379 | SLEEVE,SPRING - 1.75" OD | 1 | $90.95 | |
| 21 | 0704-926 | SPRING,SUSPENSION-RH PTD BLK | 1 | $163.95 | |
| 21 | 0704-927 | SPRING,SUSPENSION-LH PTD BLK | 1 | $163.95 | |
| 22 | 0623-044 | WSHR,FLAT HARD .375 X.875 | 1 | $4.68 | |
| 23 | 8051-277 | WASHER,SPR LOCK-3/8 .377X.688X.115 Z&Y | 1 | $1.50 | |
| 25 | 1623-119 | SCREW,CAP-HH 3/8-16X3.625 GR 5 Z&Y | 1 | $21.95 | |
| 26 | 0704-361 | LINK,REAR SHOCK-PTD BLK | 1 | $27.95 | |
| 28 | 1604-139 | SLEEVE,SHOCK EYELET-POWDER METAL | 1 | $2.06 | |
| 29 | 8041-486 | NUT,HEX THIN LOCK-NYL 3/8-16 Z&Y | 1 | $0.40 | |
| 30 | 8020-234 | SCREW,CAP-HFH 3/8-16 X 4.00 Z&Y | 1 | $6.89 |
