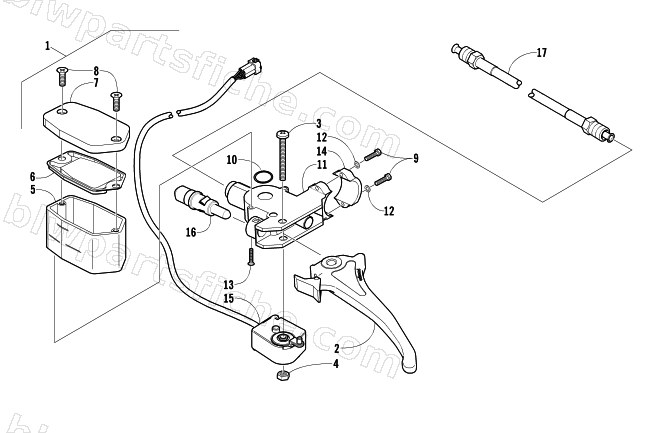

HYDRAULIC BRAKE CONTROL ASSEMBLY
2004 SABERCAT 500 LX
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1602-364 | CYLINDER,MASTER ASSY (03) | 1 | $282.95 | |
| 2 | 1602-363 | LEVER, BRAKE (03 LONG) | 1 | $56.95 | |
| 3 | 1623-027 | BOLT,LEVER MOUNTING | 1 | $6.95 | |
| 4 | 0623-056 | NUT,LOCK M6X1 | 1 | $0.40 | |
| 5 | 0602-740 | RESERVOIR,HYD BRAKE | 1 | $60.95 | |
| 6 | 0602-741 | GASKET,COVER-MASTER CYL HYD BRAKE | 1 | $27.95 | |
| 7 | 0602-742 | COVER,MASTER CYL HYD BRAKE | 1 | $19.25 | |
| 8 | 0623-506 | SCREW,COVER-MASTER CYLINDER | 1 | $1.78 | |
| 9 | 0623-613 | SCREW,CAP-TSH-HYDRAULIC BRAKE | 1 | $2.06 | |
| 10 | 0602-587 | O-RING, RESERVOIR-MASTER CYL. | 1 | $12.35 | |
| 12 | 8052-212 | WASHER,LOCK-1/4 INTL TOOTH TYP A Z&Y | 1 | $0.26 | |
| 13 | 0623-432 | SCREW,RESERVOIR MOUNTING | 1 | $3.16 | |
| 14 | 0602-907 | CLAMP,MNTG-MASTER CYL | 1 | $34.95 | |
| 14 | 5639-848 | DOT 4 BRAKE FLUID - 12 OZ | 1 | $13.73 | |
| 15 | 0609-629 | SWITCH,DMMR/BRAKE ASSY-W/HARN-28" | 1 | $114.95 | |
| 16 | 0709-077 | KIT,SPRING ASSY-DIMMER/BRAKE | 1 | $34.95 | |
| 17 | 1602-488 | R/B 3602-088 | 1 | $92.95 |
