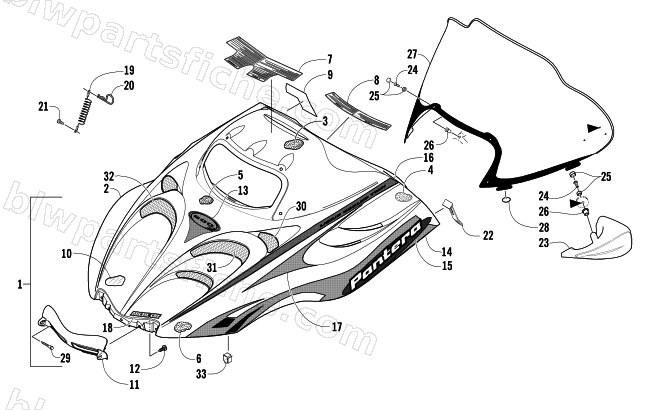

2004 Arctic Cat PANTERA 600 EFI — HOOD AND WINDSHIELD ASSEMBLY
2004 PANTERA 600 EFI
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-463 | HOOD W/ DECALS-04 PT 600 BLK | 1 | $1,312.95 | |
| 1 | 1718-472 | HOOD W/DECALS-04 PT 600 GOLD | 1 | $1,312.95 | |
| 2 | 1718-448 | HOOD W/O DECALS-PT BLK | 1 | $1,090.95 | |
| 2 | 1718-446 | HOOD W/O DECALS-PT GOLD | 1 | $1,057.95 | |
| 3 | 0717-148 | FOAM, HOOD-MIDDLE UPR RH | 1 | $15.11 | |
| 3 | 0717-149 | FOAM, HOOD-MIDDLE UPR LH | 1 | $14.95 | |
| 4 | 0717-146 | FOAM, HOOD-UPR RH | 1 | $14.95 | |
| 4 | 0717-147 | FOAM, HOOD-UPR LH | 1 | $14.95 | |
| 5 | 0717-138 | FOAM, HOOD-MIDDLE-00 ZR | 1 | $5.95 | |
| 6 | 0717-140 | FOAM, HOOD-REAR RH-00 ZR | 1 | $13.95 | |
| 6 | 0717-141 | FOAM, HOOD-REAR LH-00 ZR | 1 | $12.95 | |
| 7 | 3611-485 | DECAL, WARNING-GENL & BRAKE-ENG & FRNCH | 1 | $35.95 | |
| 8 | 3611-970 | DECAL, CAUTION-ENG/BTRY/FUEL-ENG &FRCH | 1 | $41.95 | |
| 9 | 3611-580 | DECAL,REVERSE | 1 | $25.95 | |
| 10 | 1606-938 | FOIL,HOOD-RH | 1 | $54.95 | |
| 10 | 1606-939 | FOIL, HOOD-LH | 1 | $75.95 | |
| 11 | 1606-720 | HINGE, HOOD | 1 | $45.95 | |
| 12 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 13 | 5611-229 | DECAL, HOOD-CREST-PT 600-BLK | 1 | $39.95 | |
| 13 | 5611-148 | DECAL, HOOD-CREST-PT 600-GOLD | 1 | $42.95 | |
| 14 | 5611-222 | DECAL, HOOD-LOWER-RH-BLK | 1 | $108.95 | |
| 14 | 5611-223 | DECAL, HOOD-LOWER-LH-BLK | 1 | $101.95 | |
| 14 | 5611-154 | DECAL, HOOD-LOWER-RH-GOLD | 1 | $92.95 | |
| 14 | 5611-155 | DECAL, HOOD-LOWER-LH-GOLD | 1 | $104.95 | |
| 15 | 5611-870 | DECAL, HOOD-LOWER-TOP-RH-BLK | 1 | $108.95 | |
| 15 | 5611-871 | DECAL, HOOD-LOWER-TOP-LH-BLK | 1 | $108.95 | |
| 15 | 5611-868 | DECAL, HOOD-LOWER-TOP-RH-GOLD | 1 | $108.95 | |
| 15 | 5611-869 | DECAL, HOOD-LOWER-TOP-LH-GOLD | 1 | $104.95 | |
| 16 | 5611-226 | DECAL, HOOD-UPPER-RH-BLK | 1 | $87.95 | |
| 16 | 5611-227 | DECAL, HOOD-UPPER-LH-BLK | 1 | $87.95 | |
| 16 | 5611-150 | DECAL, HOOD-UPPER-RH-GOLD | 1 | $74.95 | |
| 16 | 5611-151 | DECAL, HOOD-UPPER-LH-GOLD | 1 | $92.95 | |
| 17 | 5611-224 | DECAL, HOOD-CENTER-RH-BLK | 1 | $44.95 | |
| 17 | 5611-225 | DECAL, HOOD-CENTER-LH-BLK | 1 | $44.95 | |
| 17 | 5611-152 | DECAL, HOOD-CENTER-RH-GOLD | 1 | $36.95 | |
| 17 | 5611-153 | DECAL, HOOD-CENTER-LH-GOLD | 1 | $48.95 | |
| 18 | 5611-231 | DECAL, HOOD-"ARCTIC CAT"-GOLD | 1 | $18.95 | |
| 18 | 3611-187 | DECAL, HOOD-"ARCTIC CAT"-BLK | 1 | $26.95 | |
| 19 | 1606-158 | CABLE HOOD 35.0" | 1 | $15.11 | |
| 22 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 24 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 25 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 26 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 27 | 2606-366 | WINDSHIELD, MED-W/MIRROR HOLES | 1 | $200.95 | |
| 28 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 29 | 1623-016 | SCREW, HEX DOME HEAD -1/4-20 x1.24 Z&Y | 1 | $27.95 | |
| 30 | 2706-409 | SCREEN, VENT-HOOD-LH-PTD BLK | 1 | $32.95 | |
| 31 | 2706-407 | SCREEN, VENT-HOOD-CTR-PTD BLK | 1 | $65.95 | |
| 32 | 2706-408 | SCREEN, VENT-HOOD-RH-PTD BLK | 1 | $63.95 | |
| 33 | 0123-394 | CLIP CABLE | 1 | $1.37 |
