2004 Arctic Cat PANTERA 600 EFI — FLEX-DRIVE STARTER MOTOR ASSEMBLY

2004 PANTERA 600 EFI

Scroll / pinch to zoom · drag to pan · double-click resets

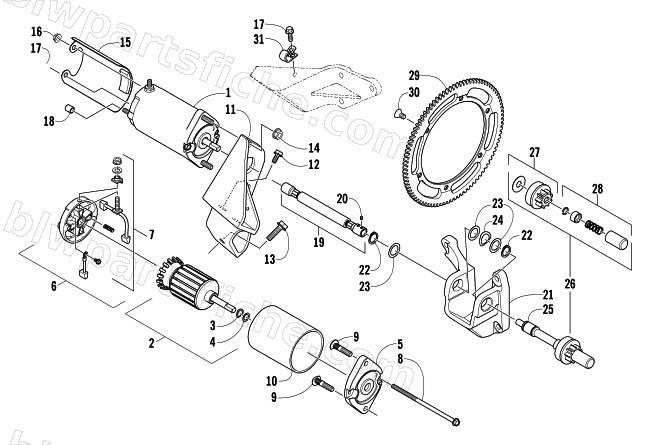

FLEX-DRIVE STARTER MOTOR ASSEMBLY diagram
# Part No. Description Qty Price
1 0745-356 STARTER MOTOR ASSY,FLEX-B W/RIBBOLT/NUTS 1 $434.95
2 0645-296 ARMATURE ASS'Y, "B PAC" FLEX ES 1 $378.95
3 0645-131 WASHER,WAVE-ELECT START MOTOR 1 $3.95
4 0645-293 WASHER, THRUST-3/8" ID ES 1 $4.26
5 0645-297 CAP,DRIVE-"B PAC" FLEX ES W/ZO7 1 $113.95
6 0645-313 CAP,COMM-LONG TB FLEX B W/BRUSHES 1 $132.95
7 0645-275 KIT, BRUSH & SPRING-ES HD SHORT 1 $71.95
8 0645-128 BOLT,THRU 1/4-20X5.75 1 $63.95
9 0623-093 BOLT, 5/16-18X1 1/2 RIBBED 1 $2.47
11 0708-097 BRACKET, MTG-FLEX STARTER (MACH) 1 $101.95
12 0623-890 SCREW, SELF,TAP-HWH 5/16X3/4" TT Z&Y 1 $2.75
13 8020-224 SCREW,CAP-HFH 3/8-16 X 1.250 Z&Y 1 $13.73
14 8048-426 NUT,HEX FLG-TOP LOCK 5/16-18 GR F Z&Y 1 $1.23
15 0745-181 SHIELD, HEAT ES ASSY 1 $17.95
16 8048-366 NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y 1 $0.68
17 0623-892 SCREW,SELF TAP-HWH 1/4-20X1/2 1 $0.95
19 0745-169 SHAFT, FLEX-ES BONDED-13.25 1 $244.95
20 0623-891 SCREW,SET-HS LP 10-24 X 1/4 CP BLK (LOCP 1 $1.37
21 0745-179 ENG MTG-LH FRNT-FLEX ES W/BUSHING 1 $88.95
22 0645-256 SNAP RING,EXTL-17MM DIA 1 $3.71
23 0645-254 WASHER, THRUST-.68IDX1.00OD (WA3122) 1 $19.95
24 0645-255 WASHER, WAVE-11/16" 1 $3.85
25 0745-253 DRIVE/SHAFT, PINION-FLEX .63 ASSY 1 $359.95
26 0745-224 KIT, DRIVE PINION-.63 1 $106.95
27 0637-265 UPDATE KIT,STARTER PINION DRIVE(4-1-2) 1 $92.95
28 0645-186 STOPPER KIT,PINION-EL START 1 $50.95
29 0645-329 RING GEAR,ELECTRIC START-LW 1 $287.95
30 1623-128 SCREW,MACH-TSFH 5/16-18X.562 Z&Y 1 $2.88
31 1623-080 CLAMP, FLEX SHAFT (550/600) 1 $1.50
