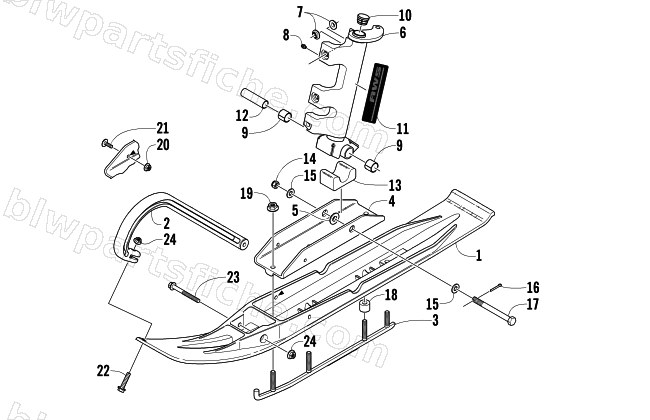

2004 Arctic Cat PANTERA 550 — SKI AND SPINDLE ASSEMBLY
2004 PANTERA 550
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0703-492 | SKI,PLASTIC-MACH(WIDE/DEEP) | 1 | $318.95 | |
| 1 | 0703-595 | SKI,PLASTIC-MACH (W/ SKAG GROOVE) | 1 | $234.95 | |
| 2 | 0603-624 | HANDLE,PLASTIC-BLACK | 1 | $32.95 | |
| 3 | 1703-003 | SKAG, LONG-4'CRB/HDWELD,PTD BLK | 1 | $65.95 | |
| 4 | 0703-269 | SADDLE,SKI-ASSY | 1 | $78.95 | |
| 4 | 0703-596 | SADDLE, SKI W/INSERTS - ASSY | 1 | $77.95 | |
| 5 | 0603-621 | INSERT-SKI SADDLE | 1 | $4.95 | |
| 6 | 0703-648 | SPINDLE,FAB.-RH MILLED (PS) | 1 | $357.95 | |
| 6 | 0703-649 | SPINDLE,FAB.-LH MILLED (PS) | 1 | $338.95 | |
| 7 | 0603-647 | INSERT,ALUM.-SPINDLE | 1 | $5.78 | |
| 8 | 0623-010 | ZERK, GREASE (LONG) | 1 | $2.47 | |
| 9 | 0603-158 | BEARING,GARLOCK 12DU12 | 1 | $8.21 | |
| 10 | 0623-831 | CAP, SPINDLE (RDR-10-1420) | 1 | $1.50 | |
| 11 | 5611-156 | DECAL, SPINDLE-RH-PANTERA | 1 | $40.95 | |
| 11 | 5611-157 | DECAL, SPINDLE-LH-PANTERA | 1 | $40.95 | |
| 12 | 2603-548 | AXLE,SPINDLE | 1 | $19.25 | |
| 13 | 0603-036 | DAMPER, SKI RUBBER | 1 | $17.87 | |
| 14 | 0123-296 | NUT,FLEX-FULL 7/16-20 | 1 | $6.47 | |
| 15 | 0623-728 | WSHR, FLAT-HARD(.469 X 1.125 X .100 THK) | 1 | $3.02 | |
| 16 | 0123-458 | PIN,COTTER 1/8X1 | 1 | $0.40 | |
| 17 | 0623-552 | SCREW,CAP-HH 7/16-20 X 4.50 W/HOLE | 1 | $12.35 | |
| 18 | 0603-616 | SPACER,SADDLE | 1 | $20.63 | |
| 19 | 8048-486 | NUT,HEX FLG-TOP LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 20 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 21 | 8017-581 | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 1 | $5.45 | |
| 22 | 8020-135 | SCREW,CAP-HFH 5/16-18 X 1.50 G5 Z&Y | 1 | $1.64 | |
| 23 | 8020-143 | SCREW,CAP-HFH 5/16-18 X 3.50 G5 Z&Y | 1 | $21.95 | |
| 24 | 8048-426 | NUT,HEX FLG-TOP LOCK 5/16-18 GR F Z&Y | 1 | $1.23 |
