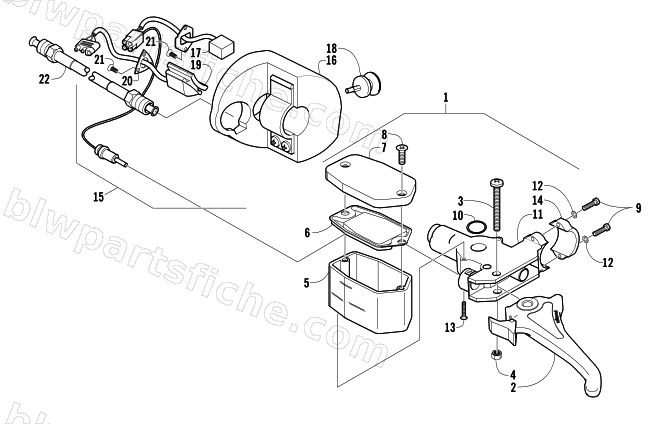

2004 Arctic Cat MOUNTAIN CAT 900 EFI 159 — HYDRAULIC BRAKE CONTROL ASSEMBLY
2004 MOUNTAIN CAT 900 EFI 159
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 5639-848 | DOT 4 BRAKE FLUID - 12 OZ | 1 | $13.73 | |
| 1 | 0602-943 | CYLINDER,MASTER (98 PROD) | 1 | $283.95 | |
| 2 | 1602-740 | LEVER,BRAKE (2005 ) | 1 | $49.95 | |
| 3 | 0623-430 | BOLT, LEVER MOUNTING | 1 | $4.68 | |
| 4 | 0623-056 | NUT,LOCK M6X1 | 1 | $0.40 | |
| 5 | 0602-740 | RESERVOIR,HYD BRAKE | 1 | $60.95 | |
| 6 | 0602-741 | GASKET,COVER-MASTER CYL HYD BRAKE | 1 | $27.95 | |
| 7 | 0602-742 | COVER,MASTER CYL HYD BRAKE | 1 | $19.25 | |
| 8 | 0623-506 | SCREW,COVER-MASTER CYLINDER | 1 | $1.78 | |
| 9 | 0623-613 | SCREW,CAP-TSH-HYDRAULIC BRAKE | 1 | $2.06 | |
| 10 | 0602-587 | O-RING, RESERVOIR-MASTER CYL. | 1 | $12.35 | |
| 12 | 8052-212 | WASHER,LOCK-1/4 INTL TOOTH TYP A Z&Y | 1 | $0.26 | |
| 13 | 0623-432 | SCREW,RESERVOIR MOUNTING | 1 | $3.16 | |
| 14 | 0602-907 | CLAMP,MNTG-MASTER CYL | 1 | $34.95 | |
| 15 | 0609-525 | CONTROL,DIM-HYD W/ HI/LO | 1 | $205.95 | |
| 16 | 0609-322 | CONTROL, DMR W/O SWITCHES-HI/LO | 1 | $81.95 | |
| 17 | 0609-267 | SWITCH ASS'Y, DIM/BRAKE(HYD)-24MM | 1 | $79.95 | |
| 18 | 0609-474 | KNOB, DIMMER SWITCH | 1 | $13.73 | |
| 19 | 0609-526 | SWITCH ASSY,HI/LO HW-BR (LH) | 1 | $55.95 | |
| 20 | 0609-378 | PLATE, SWITCH-H/W&T/W RETAINER | 1 | $11.95 | |
| 21 | 0609-312 | SCREW, PH-3X16 SELFTAPPING | 1 | $1.95 | |
| 22 | 1602-275 | HOSE,BRAKELINE-BRAIDED-CLR | 1 | $108.95 |
