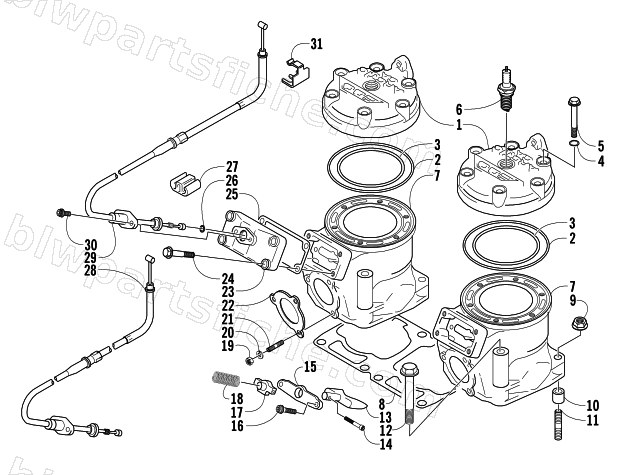

2004 Arctic Cat MOUNTAIN CAT 900 EFI 159 — CYLINDER AND HEAD ASSEMBLY
2004 MOUNTAIN CAT 900 EFI 159
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-390 | HEAD,CYL 860 L/C | 1 | $303.95 | |
| 2 | 3004-081 | O-RING,HEAD-OUTER | 1 | $23.39 | |
| 3 | 3005-854 | O-RING | 1 | $30.95 | |
| 4 | 3003-227 | O-RING, CYL HD BLT | 1 | $3.85 | |
| 5 | 3006-538 | BOLT,CYL HEAD | 1 | $5.65 | |
| 6 | 0217-709 | SPARK PLUG, BR9EYA | 1 | $5.09 | |
| 8 | 3005-951 | GASKET, CYL (REPLACES 2 OF 3005-858) | 1 | $65.95 | |
| 9 | 3007-391 | NUT,INTER COOLER BRKT | 1 | $3.16 | |
| 10 | 3004-975 | PIN, CYLINDER KNOCK(ALIGMENT) | 1 | $2.61 | |
| 11 | 3005-847 | BOLT, STUD | 1 | $9.59 | |
| 12 | 3005-846 | BOLT, 10X115 | 1 | $12.35 | |
| 13 | 3006-697 | VALVE,EXHAUST | 1 | $369.95 | |
| 14 | 3005-983 | PIN, EXHAUST VALVE 02 500 L/C | 1 | $19.25 | |
| 15 | 3005-861 | PLATE, EXHAUST VALVE | 1 | $43.95 | |
| 16 | 3006-389 | BOLT,6X16 '02 860 L/C | 1 | $3.95 | |
| 17 | 3005-860 | STOPPER, EXHAUST VALVE | 1 | $65.95 | |
| 18 | 3005-945 | SPRING | 1 | $6.95 | |
| 19 | 3007-416 | NUT | 1 | $2.75 | |
| 20 | 3004-280 | WASHER, LOCK,8MM | 1 | $1.95 | |
| 21 | 3007-415 | STUD BOLT | 1 | $4.95 | |
| 22 | 3005-880 | GASKET, EXHAUST | 1 | $19.25 | |
| 23 | 3005-662 | COVER,CYLINDER | 1 | $129.95 | |
| 24 | 3007-381 | BOLT | 1 | $3.16 | |
| 25 | 3005-283 | GASKET,CYL.COVER | 1 | $12.35 | |
| 26 | 3005-226 | O RING, WATER DRAIN | 1 | $5.09 | |
| 27 | 3005-808 | CLAMP | 1 | $6.95 | |
| 28 | 3006-695 | CABLE,EXHAUST VALVE ( PTO ) | 1 | $117.95 | |
| 29 | 3006-694 | CABLE,EXHAUST VALVE ( MAGNETO ) | 1 | $102.95 | |
| 30 | 3007-433 | BOLT | 1 | $3.16 | |
| 31 | 3005-747 | HOLDER, EXHAUST VALVE CABLE | 1 | $15.11 |
