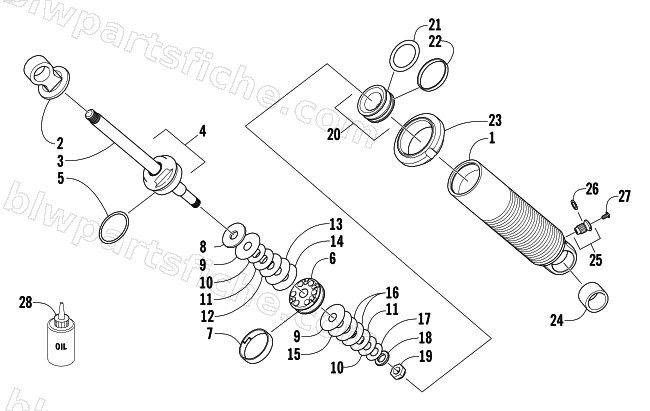

2004 Arctic Cat MOUNTAIN CAT 900 159 — REAR SUSPENSION FRONT ARM SHOCK ABSORBER
2004 MOUNTAIN CAT 900 159
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 1704-150 | SHOCK,FRT ARM-ASSY (FW) | 1 | $540.95 | |
| 1 | 2604-169 | BODY,SHOCK-FRT ARM-FRIC WELD | 1 | $324.95 | |
| 2 | 1604-825 | EYELET,SHOCK .630 DIA X .950 LGTH-YEL | 1 | $68.95 | |
| 4 | 1703-453 | END CAP,.900-W/ FLATS-ASSY | 1 | $75.95 | |
| 5 | 1604-271 | O-RING,OUTER | 1 | $2.47 | |
| 6 | 0603-952 | PISTON, 0.059 ORIFICE | 1 | $25.95 | |
| 7 | 1604-274 | STRAP, PISTON - TEFLON | 1 | $24.77 | |
| 8 | 1604-272 | WASHER, TOP OUT -1.125 x .094 | 1 | $1.37 | |
| 9 | 2603-125 | VALVE,SHOCK-1.250 DIA X .010 | 1 | $5.51 | |
| 10 | 2603-055 | VALVE,SHOCK- .800 DIA X .010 | 1 | $5.95 | |
| 11 | 2603-065 | VALVE,SHOCK- .900 DIA X .010 | 1 | $5.95 | |
| 12 | 2603-076 | VALVE,SHOCK-1.000 DIA X .012 | 1 | $5.95 | |
| 13 | 2603-096 | VALVE,SHOCK-1.100 DIA X .012 | 1 | $5.95 | |
| 14 | 2603-136 | VALVE,SHOCK-1.300 DIA X .012 | 1 | $5.95 | |
| 15 | 2603-095 | VALVE,SHOCK-1.100 DIA X .010 | 1 | $5.95 | |
| 16 | 2603-075 | VALVE,SHOCK-1.000 DIA X .010 | 1 | $5.95 | |
| 17 | 2603-045 | VALVE,SHOCK- .700 DIA X .010 | 1 | $5.95 | |
| 18 | 1604-273 | WASHER, BACKUP - .620 x .094 | 1 | $1.95 | |
| 19 | 0623-696 | NUT, FLEX - 3/8-24 UNF Z&Y | 1 | $2.95 | |
| 20 | 0704-791 | PISTON,BLEEDLESS-IFP-ASSY | 1 | $33.95 | |
| 21 | 2604-152 | O-RING,FLOATING PISTON | 1 | $2.88 | |
| 22 | 2604-153 | TEFLON BAND,FLOATING PISTON-1.459" | 1 | $26.95 | |
| 23 | 1603-911 | NUT,SPRING ADJUSTER-GRAY | 1 | $5.95 | |
| 24 | 1604-791 | BUSHING,SHOCK-.890ID X .800 | 1 | $15.11 | |
| 25 | 2604-649 | VALVE,PRESSURE-ASSY | 1 | $26.95 | |
| 26 | 0830-168 | ORING,7.6454 ID X 1.778 CS | 1 | $1.09 | |
| 27 | 0624-433 | SCREW, MACH - HSBH 8-32X1/4 SS | 1 | $0.68 | |
| 28 | 4639-366 | S/M SHOCK OIL-1 QUART | 1 | $21.95 |
