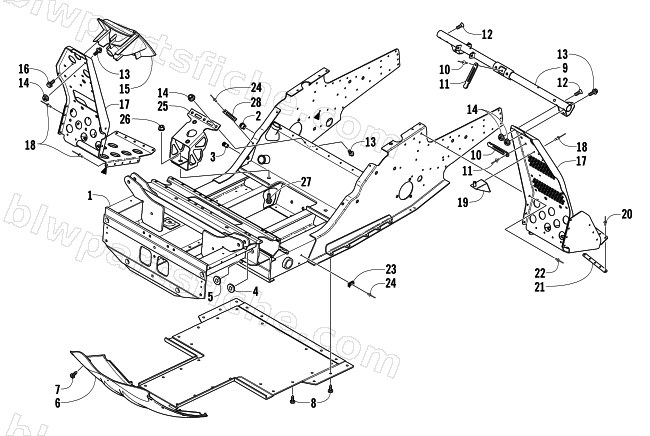

2004 Arctic Cat MOUNTAIN CAT 800 EFI 159 — FRONT FRAME AND FOOTREST ASSEMBLY
2004 MOUNTAIN CAT 800 EFI 159
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0707-814 | CHASSIS, S/P ASSY-04 MTN CAT 800/900 | 1 | $1,082.95 | |
| 2 | 0623-581 | INSERT, A L SERIES AL57-518-150 5/16-18 | 1 | $3.16 | |
| 3 | 0623-582 | INSERT, A L SERIES (1/4-20) | 1 | $3.16 | |
| 4 | 0607-421 | INSERT,UPPER A-ARM MTG. | 1 | $2.47 | |
| 5 | 0607-420 | INSERT,LOWER A-ARM MTG. | 1 | $2.47 | |
| 6 | 1606-719 | BELLY PAN, CTR-BLK | 1 | $161.95 | |
| 7 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 8 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 9 | 0705-940 | SUPPORT,STEERING-PTD BLK | 1 | $85.95 | |
| 10 | 3606-173 | STRAP,HOLDDOWN-AIR SILENCER | 1 | $5.37 | |
| 11 | 8061-628 | RIVET,BLIND-LF AA66 BLACK | 1 | $0.95 | |
| 12 | 8019-614 | SCREW,MACH-TSPNH 1/4-20 X 1 1/4 GR2 BLK | 1 | $0.95 | |
| 13 | 8020-039 | SCREW,CAP-HFH 1/4-20 X 0.625 Z&Y | 1 | $0.95 | |
| 14 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 15 | 1606-062 | CUP, RECOIL ROPE | 1 | $22.01 | |
| 16 | 0623-297 | SCREW,SELF TAP-HWH #8X3/4 TYPE A | 1 | $0.68 | |
| 17 | 2606-800 | FOOTREST W/CUT OUT-RH | 1 | $92.95 | |
| 17 | 2606-733 | FOOTREST,LH-W/HOLES | 1 | $92.95 | |
| 18 | 0623-166 | RIVET,CHERRY-5/32 X 3/16 | 1 | $0.95 | |
| 19 | 0705-173 | BRKT, FASTENER-GUARD-PTD BLK | 1 | $20.95 | |
| 20 | 0623-282 | RIVET,3/16 MONOBOLT | 1 | $0.95 | |
| 21 | 2706-110 | PLATE,BACKING-FOOTREST-PTD BLK | 1 | $6.95 | |
| 22 | 0623-341 | RIVET,3/16 MONOBOLT (.214/.437) | 1 | $1.23 | |
| 23 | 0623-228 | MOUNT,CABLE TIE | 1 | $2.95 | |
| 24 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 25 | 0708-398 | BRKT, ENG MTG-L/W-PTD BLK | 1 | $33.95 | |
| 26 | 8048-426 | NUT,HEX FLG-TOP LOCK 5/16-18 GR F Z&Y | 1 | $1.23 | |
| 27 | 8020-130 | SCREW,CAP-HFH 5/16-18 X0.75 G5 Z&Y | 1 | $0.95 | |
| 28 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 |
