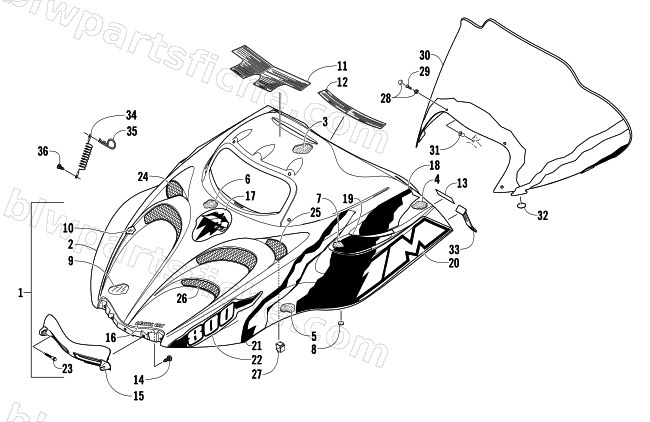

2004 Arctic Cat MOUNTAIN CAT 800 EFI 151 — HOOD AND WINDSHIELD ASSEMBLY
2004 MOUNTAIN CAT 800 EFI 151
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1718-434 | HOOD,W/DECAL-MC 800 EFI-GRN | 1 | $1,312.95 | |
| 2 | 1718-433 | HOOD,W/O DECAL-04 MC-GRN | 1 | $1,057.95 | |
| 3 | 0717-148 | FOAM, HOOD-MIDDLE UPR RH | 1 | $15.11 | |
| 3 | 0717-149 | FOAM, HOOD-MIDDLE UPR LH | 1 | $14.95 | |
| 4 | 0717-164 | FOAM, HOOD-UPR RH | 1 | $6.95 | |
| 4 | 0717-147 | FOAM, HOOD-UPR LH | 1 | $14.95 | |
| 5 | 0717-162 | FOAM, HOOD-REAR RH | 1 | $5.95 | |
| 5 | 0717-141 | FOAM, HOOD-REAR LH-00 ZR | 1 | $12.95 | |
| 6 | 0717-138 | FOAM, HOOD-MIDDLE-00 ZR | 1 | $5.95 | |
| 7 | 0617-426 | FOAM, VENT-HOOD | 1 | $27.95 | |
| 8 | 0623-078 | DISC,VELCRO #8 | 1 | $1.95 | |
| 9 | 1606-938 | FOIL,HOOD-RH | 1 | $54.95 | |
| 9 | 1606-939 | FOIL, HOOD-LH | 1 | $75.95 | |
| 10 | 2606-233 | FOIL, HOOD-UPR RH | 1 | $89.95 | |
| 11 | 3611-485 | DECAL, WARNING-GENL & BRAKE-ENG & FRNCH | 1 | $35.95 | |
| 12 | 3611-970 | DECAL, CAUTION-ENG/BTRY/FUEL-ENG &FRCH | 1 | $41.95 | |
| 13 | 3611-509 | DECAL, WARNING-SEATING CAPACITY | 1 | $72.95 | |
| 14 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 15 | 3606-032 | HINGE,HOOD-BLACK-ROUTED | 1 | $44.95 | |
| 16 | 5611-411 | DECAL,"ARCTIC CAT"-HOOD-NOSE (GOLD) | 1 | $20.63 | |
| 17 | 5611-435 | DECAL,HOOD-"1M EFI"-CREST (GRN) | 1 | $76.95 | |
| 18 | 5611-420 | DECAL,HOOD-VENT-UPPER-R/H (GRN) | 1 | $42.95 | |
| 18 | 5611-421 | DECAL,HOOD-VENT-UPPER-L/H (GRN) | 1 | $42.95 | |
| 19 | 5611-418 | DECAL,HOOD-VENT-CENTER-R/H (GRN) | 1 | $20.63 | |
| 19 | 5611-419 | DECAL,HOOD-VENT-CENTER-L/H (GRN) | 1 | $20.63 | |
| 20 | 5611-412 | DECAL,HOOD-"1M"-LOWER-R/H (GRN) | 1 | $99.95 | |
| 20 | 5611-413 | DECAL,HOOD-"1M"-LOWER-L/H (GRN) | 1 | $102.95 | |
| 21 | 5611-422 | DECAL,HOOD-FORWARD-R/H (GRN) | 1 | $63.95 | |
| 21 | 5611-423 | DECAL,HOOD-FORWARD-L/H (GRN) | 1 | $63.95 | |
| 22 | 5611-428 | DECAL,HOOD-"800"-FORWARD-R/H (GRN) | 1 | $66.95 | |
| 22 | 5611-429 | DECAL,HOOD-"800"-FORWARD-L/H (GRN) | 1 | $66.95 | |
| 23 | 1623-016 | SCREW, HEX DOME HEAD -1/4-20 x1.24 Z&Y | 1 | $27.95 | |
| 24 | 2706-194 | SCREEN,VENT-HOOD-R/H-PTD PLATINUM | 1 | $39.95 | |
| 25 | 2706-195 | SCREEN,VENT-HOOD-LH-UPPER-PTD PLATINUM | 1 | $17.95 | |
| 26 | 2606-325 | SCREEN, VENT HOOD-LH-CTR/SLV | 1 | $64.95 | |
| 27 | 0123-394 | CLIP CABLE | 1 | $1.37 | |
| 28 | 0124-054 | SNAP CAP W/WASHER | 1 | $1.23 | |
| 29 | 0623-902 | SCREW, MACH-PHTRH-10-32X5/8-ZY | 1 | $0.95 | |
| 30 | 3606-084 | WINDSHIELD,FORMED-04 MC-GRN | 1 | $236.95 | |
| 31 | 0623-845 | NUT, EXP,10-32 | 1 | $2.47 | |
| 32 | 0616-032 | O-RING-WINDSHIELD (1 I.D.) | 1 | $1.78 | |
| 33 | 1606-067 | STRAP, HOLDDOWN- HOOD | 1 | $12.35 | |
| 34 | 1606-158 | CABLE HOOD 35.0" | 1 | $15.11 |
