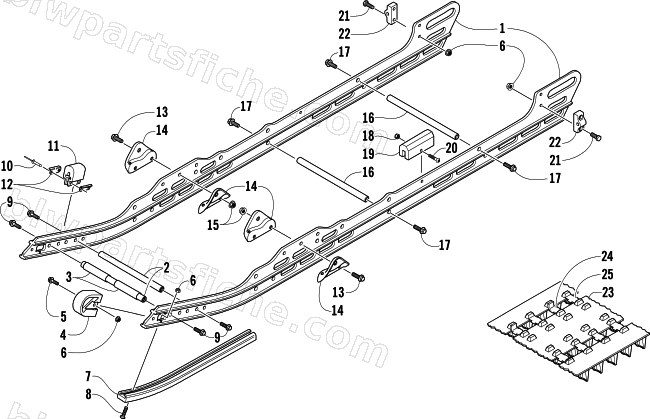

2004 Arctic Cat MOUNTAIN CAT 600 EFI — SLIDE RAIL AND TRACK ASSEMBLY
2004 MOUNTAIN CAT 600 EFI
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2604-374 | RAIL,SUSP-144" STAMPED-W/O NOTCH | 1 | $252.95 | |
| 2 | 0604-426 | AXLE, XBRC-.625X8.750 (5/16-18) | 1 | $34.95 | |
| 3 | 2604-636 | SPACER,ALUM-.750 X .058 X 3.75 | 1 | $10.95 | |
| 4 | 2604-507 | NOSEPIECE,RAIL-TAPERED | 1 | $15.11 | |
| 5 | 8020-042 | SCREW,CAP-HFH 1/4-20 X 1.00 Z&Y | 1 | $1.09 | |
| 6 | 8047-366 | NUT,HEX FLG-NY LOCK 1/4-20 GR F Z&Y | 1 | $0.40 | |
| 7 | 2604-799 | WEARSTRIP,162" SLIDE RAIL-BLK | 1 | $38.95 | |
| 8 | 0123-859 | SCREW,MACH-PHFH 1/4-20 X 1 1/8 Z&Y | 1 | $1.09 | |
| 9 | 8020-134 | SCREW,CAP-HFH 5/16-18 X 1.25 G5 Z&Y | 1 | $1.50 | |
| 10 | 8060-633 | RIVET,BLIND-DH AA614 BLK | 1 | $1.09 | |
| 11 | 0604-918 | PAD,SHOCK-RUBBER | 1 | $13.73 | |
| 12 | 0604-967 | BRACKET,RETAINING-SHOCK PAD | 1 | $3.57 | |
| 13 | 8020-131 | SCREW,CAP-HFH 5/16-18 X0.875 G5 Z&Y | 1 | $1.50 | |
| 14 | 2604-593 | BRACKET,MTG-FRONT ARM-ZINC | 1 | $22.01 | |
| 15 | 8048-426 | NUT,HEX FLG-TOP LOCK 5/16-18 GR F Z&Y | 1 | $1.23 | |
| 16 | 0604-930 | AXLE,XBRC (ALUM) -625X8.750 (3/8-16) | 1 | $37.95 | |
| 17 | 8020-222 | SCREW,CAP-HFH 3/8-16 X 1.00 G5 Z&Y | 1 | $1.37 | |
| 18 | 8041-246 | NUT,HEX THIN LOCK-NYL 10-24 Z&Y | 1 | $0.26 | |
| 19 | 1604-607 | PAD,SHOCK-RUBBER PWDR | 1 | $15.11 | |
| 20 | 8017-405 | SCREW,MACH-TSTRH 10-24X1.50 GR2 Z&Y | 1 | $0.95 | |
| 21 | 8002-042 | SCREW,CAP-HH 1/4-20 X1.00 G5 Z&Y | 1 | $0.40 | |
| 22 | 0704-352 | ADJUSTER,TRACK-MACH. | 1 | $24.77 | |
| 23 | 1602-137 | TRACK, 15X144"X2" 3/5-12,B(80/60DURO) | 1 | $1,441.95 | |
| 24 | 2602-383 | CLIP,GUIDE | 1 | $4.26 | |
| 25 | 2602-384 | CLIP,WEAR | 1 | $3.57 |
