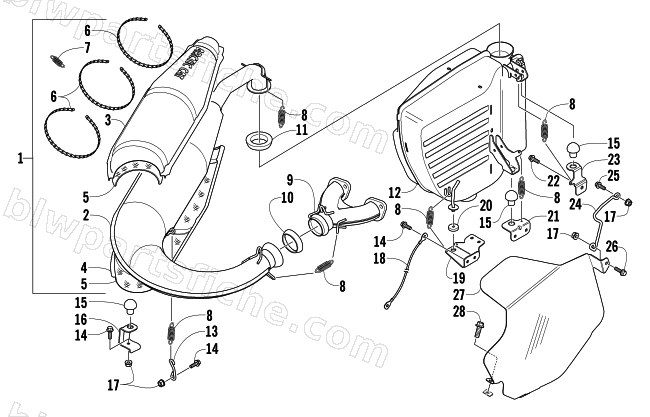

2004 Arctic Cat MOUNTAIN CAT 570 — EXHAUST ASSEMBLY
2004 MOUNTAIN CAT 570
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0712-734 | CHAMBER,EXPANSION-FAB 560 F/C | 1 | $576.95 | |
| 2 | 0712-732 | CHAMBER,EXPANSION-PTD BLK | 1 | $408.95 | |
| 3 | 1612-436 | COVER, EXP-UPPER | 1 | $322.95 | |
| 4 | 1612-435 | COVER, EXP-LWR | 1 | $331.95 | |
| 5 | 1612-550 | PACKING, EXP-UPR & LWR | 1 | $30.95 | |
| 6 | 0624-552 | TIE, PERFORATED BAND-5FT | 1 | $20.63 | |
| 6 | 0624-541 | TIE,PERFORATED BAND-IT( 25' ) | 1 | $110.95 | |
| 7 | 1612-178 | SPRING, EXHAUST STRAP | 1 | $3.85 | |
| 8 | 0612-471 | SPRING,EXHAUST | 1 | $12.35 | |
| 9 | 1712-055 | MANIFOLD, EXHAUST-MACH-570 | 1 | $196.95 | |
| 10 | 0612-131 | GASKET,EXHAUST-HEADER JOINT | 1 | $29.95 | |
| 11 | 1612-066 | GASKET,EXHAUST TAIL PIPE 99/600/B | 1 | $37.95 | |
| 12 | 0712-995 | RESONATOR-PTD BLK | 1 | $647.95 | |
| 13 | 0712-913 | BRKT,WIREFORM-EXP. CHAMBER-PTD BLK | 1 | $6.47 | |
| 14 | 8020-039 | SCREW,CAP-HFH 1/4-20 X 0.625 Z&Y | 1 | $0.95 | |
| 15 | 0612-111 | BUMPER,MOLDED-RUBBER | 1 | $16.49 | |
| 16 | 1612-508 | BRKT, MTG-EXP CHAMBER | 1 | $13.95 | |
| 17 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 18 | 0686-126 | HARNESS,ENGINE-GROUND | 1 | $12.35 | |
| 19 | 0712-705 | BRKT, MTG-RESONATOR-PTD BLK | 1 | $36.95 | |
| 20 | 1612-319 | BUSHING, STEM RESONATOR MTG | 1 | $3.95 | |
| 21 | 0712-992 | BRKT,MTG-RESONATOR/CHASSIS-PTD BLK | 1 | $13.73 | |
| 22 | 8020-132 | SCREW,CAP-HFH 5/16-18 X1.00 G5 Z&Y | 1 | $1.95 | |
| 23 | 0712-991 | BRKT,MTG-RESONATOR/DROPCASE-PTD BLK | 1 | $10.95 | |
| 24 | 0708-468 | KIT,ROPE GUIDE(1M) | 1 | $55.95 | |
| 25 | 8020-044 | SCREW,CAP-HFH 1/4-20 X 1.250 Z&Y | 1 | $3.85 | |
| 26 | 8020-041 | SCREW,CAP-HFH 1/4-20 X 0.875 Z&Y | 1 | $6.47 | |
| 27 | 2706-013 | SHIELD,HEAT-ALUM-ASSY | 1 | $134.95 | |
| 28 | 0623-765 | SCREW,SELF TAP-HWH 5/16-18X.625 TT Z&Y | 1 | $1.23 |
