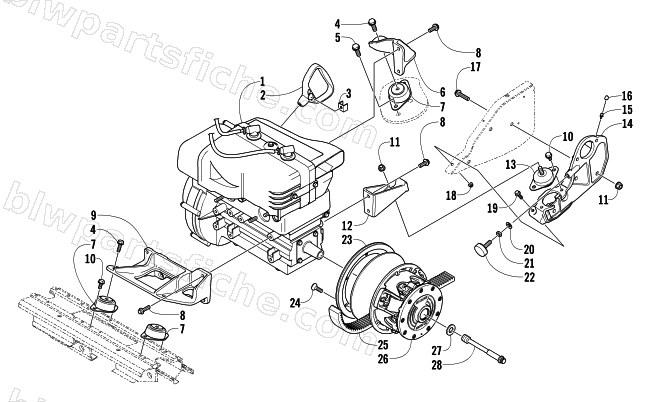

2004 Arctic Cat MOUNTAIN CAT 570 — ENGINE AND RELATED PARTS
2004 MOUNTAIN CAT 570
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0762-584 | LONG BLOCK,ENGINE-570 | 1 | $1,979.95 | |
| 2 | 0636-363 | HANDLE,RECOIL-LARGE | 1 | $15.11 | |
| 3 | 0606-885 | CAP,RECOIL HANDLE | 1 | $1.37 | |
| 4 | 8020-220 | SCREW,CAP-HFH 3/8-16 X 0.750 Z&Y | 1 | $1.09 | |
| 5 | 8020-130 | SCREW,CAP-HFH 5/16-18 X0.75 G5 Z&Y | 1 | $0.95 | |
| 6 | 0708-132 | BRKT,ENG MTG-MAG RR-MACH | 1 | $71.95 | |
| 7 | 0608-645 | MOUNT,ENGINE | 1 | $113.95 | |
| 8 | 8020-132 | SCREW,CAP-HFH 5/16-18 X1.00 G5 Z&Y | 1 | $1.95 | |
| 9 | 0708-131 | BRKT,ENG-MTG-PTO FRONT(MACH 785 STYLE) | 1 | $147.95 | |
| 10 | 0623-765 | SCREW,SELF TAP-HWH 5/16-18X.625 TT Z&Y | 1 | $1.23 | |
| 11 | 8048-486 | NUT,HEX FLG-TOP LOCK 3/8-16 GR F Z&Y | 1 | $0.95 | |
| 12 | 0708-133 | BRKT,ENG,MTG-PTO REAR(MACHINED) | 1 | $93.95 | |
| 13 | 0708-145 | MOUNT,ENGINE-ASSY | 1 | $40.95 | |
| 14 | 0708-400 | BRKT,BEARING SUPPORT-ASSY | 1 | $94.95 | |
| 15 | 0623-899 | ZERK, GREASE DRIVE | 1 | $2.88 | |
| 16 | 0623-904 | CAP, GREASE FITTING | 1 | $0.85 | |
| 17 | 8020-224 | SCREW,CAP-HFH 3/8-16 X 1.250 Z&Y | 1 | $13.73 | |
| 18 | 8048-366 | NUT,HEX FLG-TOP LOCK 1/4-20 GR F Z&Y | 1 | $0.68 | |
| 19 | 8020-040 | SCREW,CAP-HFH 1/4-20 X 0.750 Z&Y | 1 | $1.78 | |
| 20 | 8050-272 | WASHER,FLAT- 3/8 X .734 X .063 Z&Y | 1 | $0.26 | |
| 21 | 0123-191 | NUT,JAM 3/8-24(RIGHT HAND) | 1 | $0.95 | |
| 22 | 0608-355 | R/B 0608-784 | 1 | $19.95 | |
| 23 | 0645-410 | RING,DAMPER - CLUTCH | 1 | $82.95 | |
| 24 | 1623-128 | SCREW,MACH-TSFH 5/16-18X.562 Z&Y | 1 | $2.88 | |
| 25 | 0627-020 | BELT,DRIVE-CVT 12.2" CTRS. | 1 | $133.95 | |
| 26 | 0746-839 | KIT,DRIVE CLUTCH-UNCAL-8.25 30MM/D | 1 | $850.95 | |
| 27 | 0623-210 | WASHER, LOCK-1/2" HI-COLLAR | 1 | $0.68 | |
| 28 | 0623-804 | BOLT, CLUTCH-1/2-20X5-1/5-12 PT | 1 | $15.11 |
